SKU: K89309-TV-INA

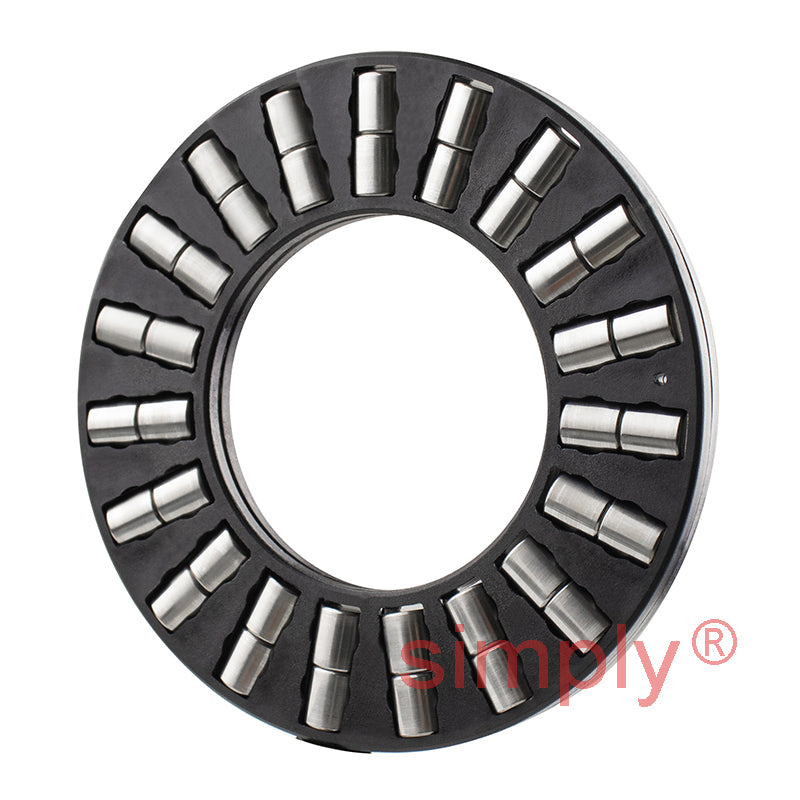

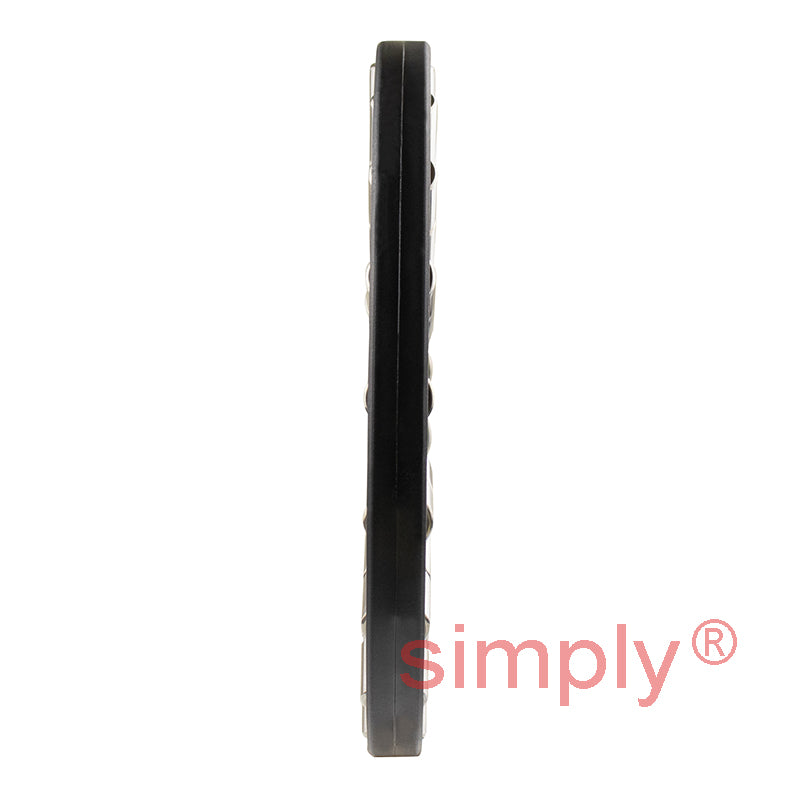

INA K89309TV Axial Cylindrical Roller Bearing with Cage 45x85x24mm
- Regular price
- CHF 36.00 ex VAT
- Sale price
- CHF 36.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 32.04
19
CHF 30.24
29
CHF 29.88
39
CHF 29.52
49
CHF 29.16
74
CHF 28.80
99
CHF 27.00
199
CHF 26.64
249
CHF 26.28
499
CHF 25.92
999
CHF 25.20
SKU:
K89309-TV-INA
INA K89309TV Axial Cylindrical Roller Bearing with Cage 45x85x24mm
- Regular price
- CHF 36.00 ex VAT
- Sale price
- CHF 36.00
- Regular price
-
Description
Axial Cylindrical Roller Bearings: These bearings are part of the group of axial roller bearings. As opposed to the ball, the roller has a larger contact area perpendicular to the roller axis which allows it to transmit higher forces, have greater rigidity and allows smaller rolling element diameters under the same load. The bearing comprise flat, ribless washers (housing and shaft locating washers) between which axial cylindrical roller and cage assemblies are arranged. The axial cages are fitted with one or two rows of cylindrical rollers. As sliding occurs towards the ends of the rollers during rolling of the rolling elements and this increases with the length of the roller, bearings with a wide cross-section have several short rollers arranged adjacent to each other e.g. double row designs.
