SKU: K22x30x15TN-MB

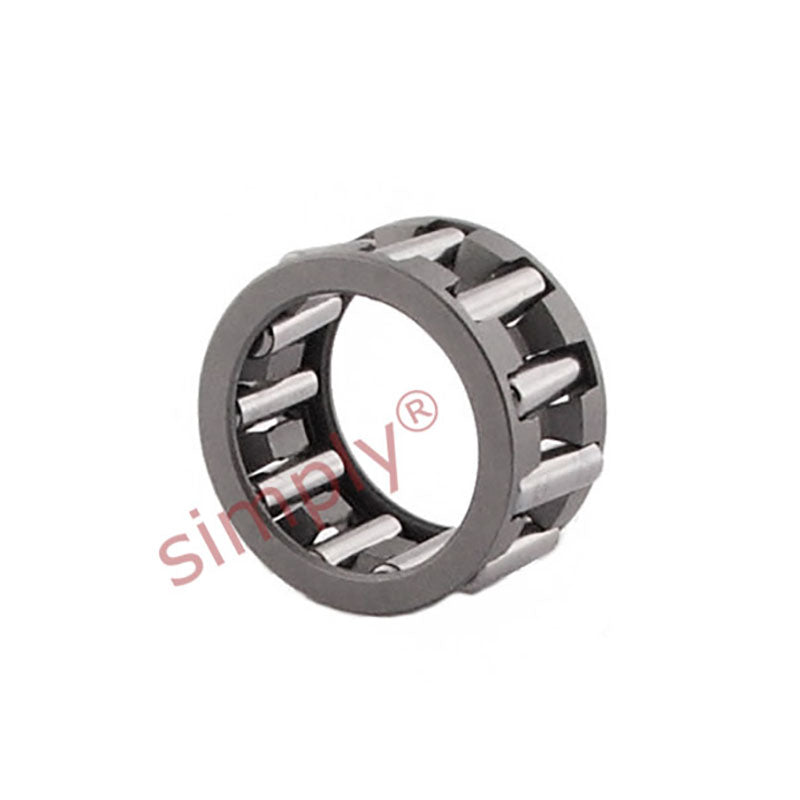

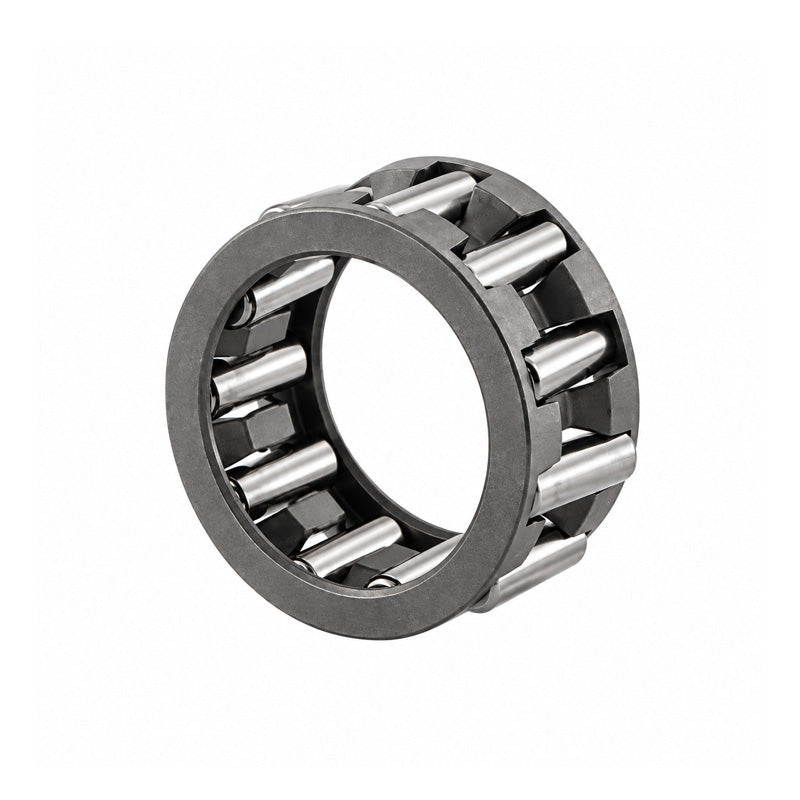

Major Brand K22x30x15TN Needle Roller Cage Assembly 22x30x15mm
- Regular price
- CHF 15.00 ex VAT
- Sale price
- CHF 15.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 13.35
19
CHF 12.60
29
CHF 12.45
39
CHF 12.30
49
CHF 12.15
74
CHF 12.00
99
CHF 11.25
199
CHF 11.10
249
CHF 10.95
499
CHF 10.80
999
CHF 10.50
SKU:
K22x30x15TN-MB
Major Brand K22x30x15TN Needle Roller Cage Assembly 22x30x15mm
- Regular price
- CHF 15.00 ex VAT
- Sale price
- CHF 15.00
- Regular price
-
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Technical
| Fw | = | 22mm |
| Ew | = | 30mm |
| U | = | 15mm |
| Dynamic load | = | 19000 N |
| Static load | = | 23600 N |
| Fatigue load limit Pu | = | 2800 N |
| Speed in grease | = | 11000 rpm |
| Speed in oil | = | 17000 rpm |
| Seal | = | G/SD22x30x4 |
| Weight | = | 18 g |
