SKU: K12x18x12TN-EU

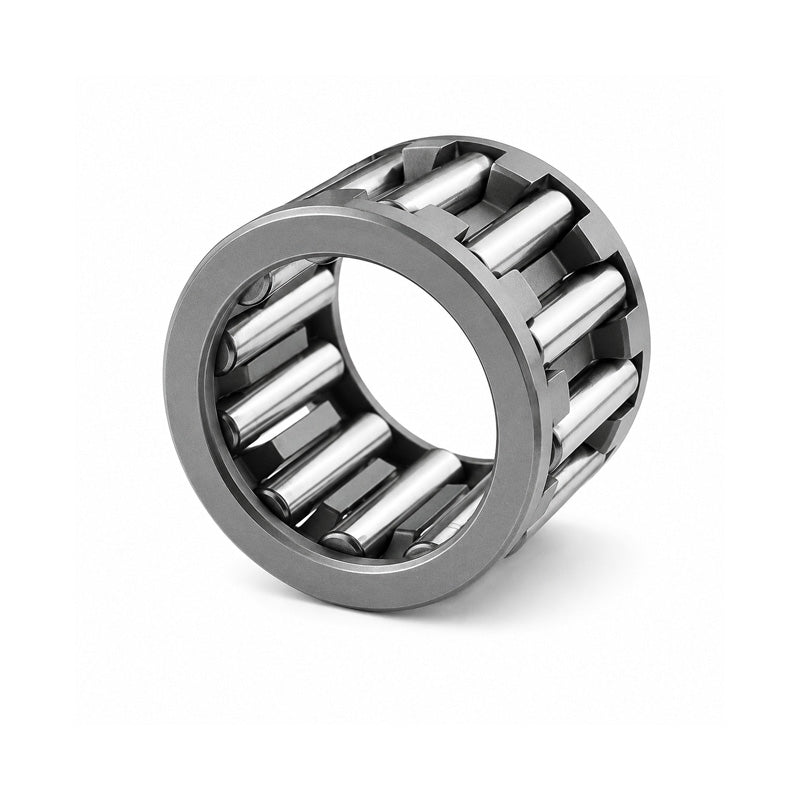

K12x18x12TN Budget Needle Roller Cage Assembly 12x18x12mm
- Regular price
- CHF 7.00 ex VAT
- Sale price
- CHF 7.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 6.23
19
CHF 5.88
29
CHF 5.81
39
CHF 5.74
49
CHF 5.67
74
CHF 5.60
99
CHF 5.25
199
CHF 5.18
249
CHF 5.11
499
CHF 5.04
999
CHF 4.90
SKU:
K12x18x12TN-EU
K12x18x12TN Budget Needle Roller Cage Assembly 12x18x12mm
- Regular price
- CHF 7.00 ex VAT
- Sale price
- CHF 7.00
- Regular price
-
Description
|
Budget Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Technical
| Fw | = | 12mm |
| Ew | = | 18mm |
| U | = | 12mm |
| Dynamic load C | = | 9520 N |
| Static load Co | = | 10000 N |
| Fatigue load limit Pu | = | 1180 N |
| Speed in grease | = | 17000 rpm |
| Speed in oil | = | 26000 rpm |
| Seal | = | G/SD12x18x3 |
| Weight | = | 6 g |
