SKU: HT80-14M-40
TL80-14M-40 - 14mm Pitch 80 Tooth Flangeless HTD Type Cast Iron Taper Bore Timing Pulley for 40mm Wide Belts
- Regular price
- CHF 164.00 ex VAT
- Sale price
- CHF 164.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 145.96
5
CHF 137.76
9
CHF 136.12
19
CHF 134.48
49
CHF 132.84
74
CHF 131.20
99
CHF 123.00
199
CHF 121.36
249
CHF 119.72
499
CHF 118.08
999
CHF 114.80
SKU:
HT80-14M-40
TL80-14M-40 - 14mm Pitch 80 Tooth Flangeless HTD Type Cast Iron Taper Bore Timing Pulley for 40mm Wide Belts
- Regular price
- CHF 164.00 ex VAT
- Sale price
- CHF 164.00
- Regular price
-
Description
HTD Taper Bore Timing Pulleys: High torque drive (HTD) timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.
Technical

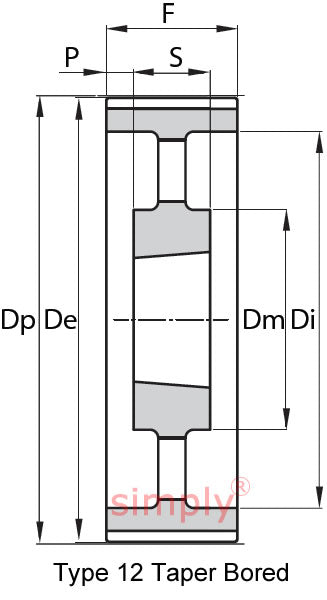

| --- | = | Pulley Dimensions |
| Pitch | = | 14mm |
| Number of Teeth | = | 80 |
| Type | = | 12 Taper Bore |
| Bush | = | < |
| a href=" | = | advanced_search_result.php?sort=2a& |
| search_in_description=0& | = | keywords=3020+tapered+locking+bush " |
| > | = | 3020 Click Here< |
| /a> | = | |
| Dp | = | 356.51mm |
| De | = | 353.71mm |
| = | Dm | |
| 170mm | = | Di |
| 315mm | = | F |
| 54mm | = | S |
| 51mm | = | P |
| 1.5mm | = | Weight |
| 16.00kg | = | N/A |
