SKU: HT64-14M-115F

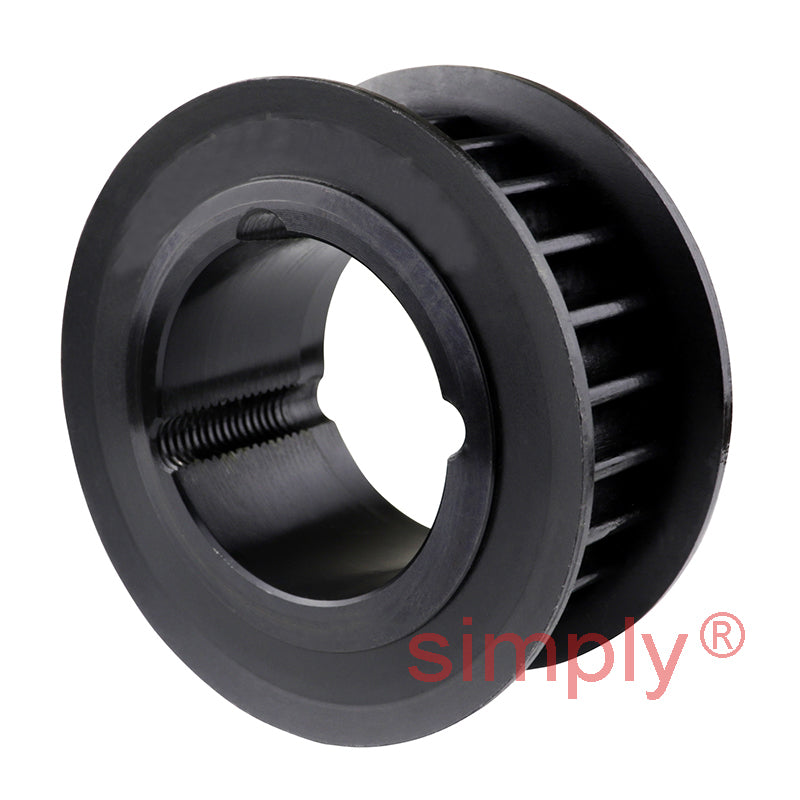

TL64-14M-115F - 14mm Pitch 64 Tooth Flanged HTD Type Cast Iron Taper Bore Timing Pulley for 115mm Wide Belts
- Regular price
- CHF 349.00 ex VAT
- Sale price
- CHF 349.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 310.61
5
CHF 293.16
9
CHF 289.67
19
CHF 286.18
49
CHF 282.69
74
CHF 279.20
99
CHF 261.75
199
CHF 258.26
249
CHF 254.77
499
CHF 251.28
999
CHF 244.30
SKU:
HT64-14M-115F
TL64-14M-115F - 14mm Pitch 64 Tooth Flanged HTD Type Cast Iron Taper Bore Timing Pulley for 115mm Wide Belts
- Regular price
- CHF 349.00 ex VAT
- Sale price
- CHF 349.00
- Regular price
-
Description
HTD Taper Bore Timing Pulleys: High torque drive (HTD) timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.
Technical

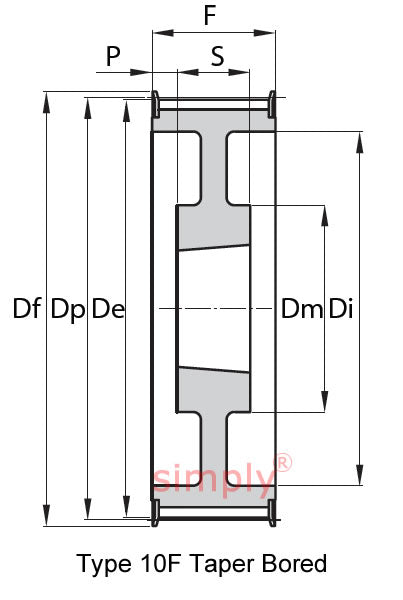

| --- | = | Pulley Dimensions |
| Pitch | = | 14mm |
| Number of Teeth | = | 64 |
| Type | = | 10F Taper Bore |
| Bush | = | < |
| a href=" | = | advanced_search_result.php?sort=2a& |
| search_in_description=0& | = | keywords=3535+tapered+locking+bush " |
| > | = | 3535 Click Here< |
| /a> | = | |
| Dp | = | 285.21mm |
| De | = | 282.41mm |
| Df | = | 296mm |
| Dm | = | 190mm |
| Di | = | 240mm |
| F | = | 133mm |
| S | = | 89mm |
| P | = | 22mm |
| Weight | = | 32.00kg |
