SKU: HT38-5M-15F

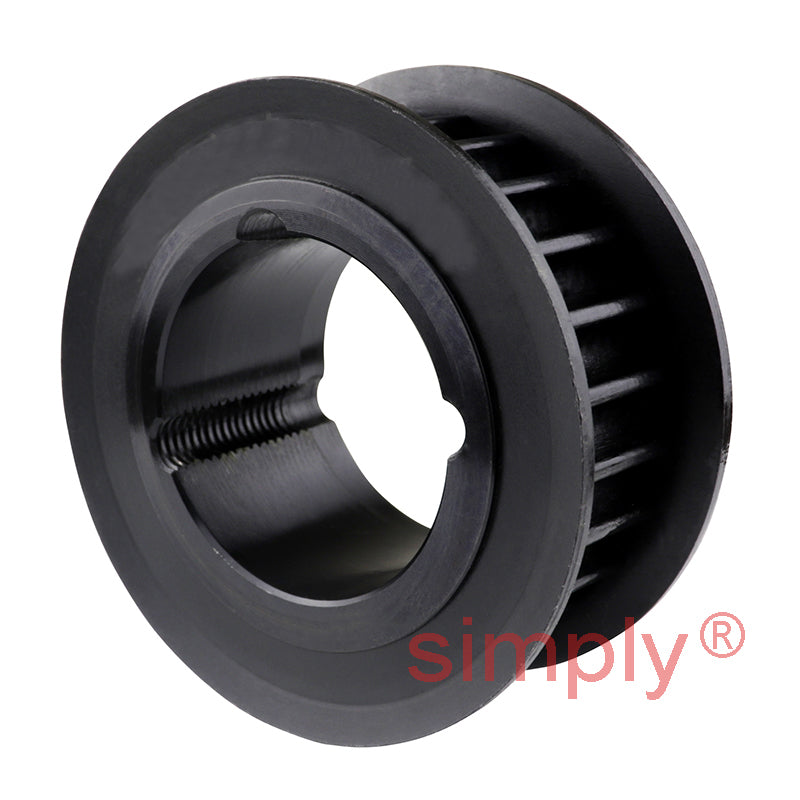

TL38-5M-15F - 5mm Pitch 38 Tooth Flanged HTD Type Steel Taper Bore Timing Pulley for 15mm Wide Belts
- Regular price
- CHF 19.00 ex VAT
- Sale price
- CHF 19.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 16.91
5
CHF 15.96
9
CHF 15.77
19
CHF 15.58
49
CHF 15.39
74
CHF 15.20
99
CHF 14.25
199
CHF 14.06
249
CHF 13.87
499
CHF 13.68
999
CHF 13.30
SKU:
HT38-5M-15F
TL38-5M-15F - 5mm Pitch 38 Tooth Flanged HTD Type Steel Taper Bore Timing Pulley for 15mm Wide Belts
- Regular price
- CHF 19.00 ex VAT
- Sale price
- CHF 19.00
- Regular price
-
Description
HTD Taper Bore Timing Pulleys: High torque drive (HTD) timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.
Technical

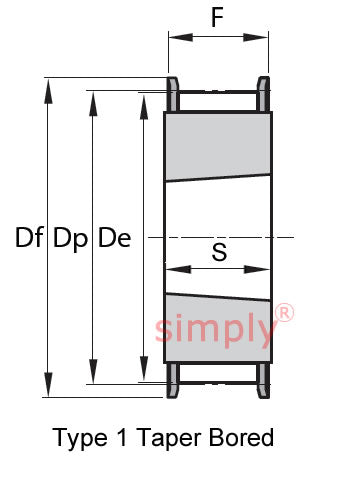

| --- | = | Pulley Dimensions |
| Pitch | = | 5mm |
| Number of Teeth | = | 38 |
| Type | = | 1F Taper Bore |
| Bush | = | < |
| a href=" | = | advanced_search_result.php?sort=2a& |
| search_in_description=0& | = | keywords=1108+tapered+locking+bush " |
| > | = | 1108 Click Here< |
| /a> | = | |
| Dp | = | 60.48mm |
| De | = | 59.34mm |
| Df | = | 66mm |
| = | ||
| F | = | 20.5mm |
| S | = | 22mm |
| = | Weight | |
| 0.30kg | = | N/A |
