SKU: HT32-14M-85F
TL32-14M-85F - 14mm Pitch 32 Tooth Flanged HTD Type Steel Taper Bore Timing Pulley for 85mm Wide Belts
- Regular price
- CHF 89.00 ex VAT
- Sale price
- CHF 89.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 79.21
5
CHF 74.76
9
CHF 73.87
19
CHF 72.98
49
CHF 72.09
74
CHF 71.20
99
CHF 66.75
199
CHF 65.86
249
CHF 64.97
499
CHF 64.08
999
CHF 62.30
SKU:
HT32-14M-85F
TL32-14M-85F - 14mm Pitch 32 Tooth Flanged HTD Type Steel Taper Bore Timing Pulley for 85mm Wide Belts
- Regular price
- CHF 89.00 ex VAT
- Sale price
- CHF 89.00
- Regular price
-
Description
HTD Taper Bore Timing Pulleys: High torque drive (HTD) timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.
Technical

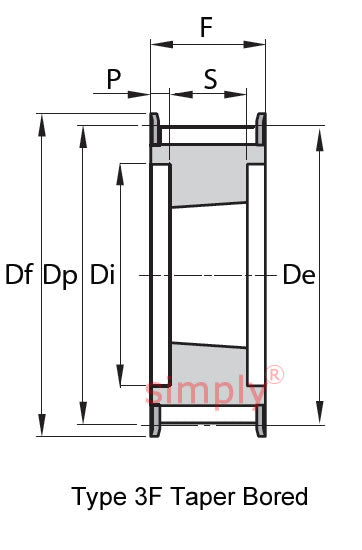

| --- | = | Pulley Dimensions |
| Pitch | = | 14mm |
| Number of Teeth | = | 32 |
| Type | = | 3F Taper Bore |
| Bush | = | < |
| a href=" | = | advanced_search_result.php?sort=2a& |
| search_in_description=0& | = | keywords=2517+tapered+locking+bush " |
| > | = | 2517 Click Here< |
| /a> | = | |
| Dp | = | 142.6mm |
| De | = | 139.88mm |
| Df | = | 154mm |
| = | Di | |
| 108mm | = | F |
| 102mm | = | S |
| 45mm | = | P |
| 28.5mm | = | Weight |
| 4.70kg | = | N/A |
