SKU: HRC70F-MB

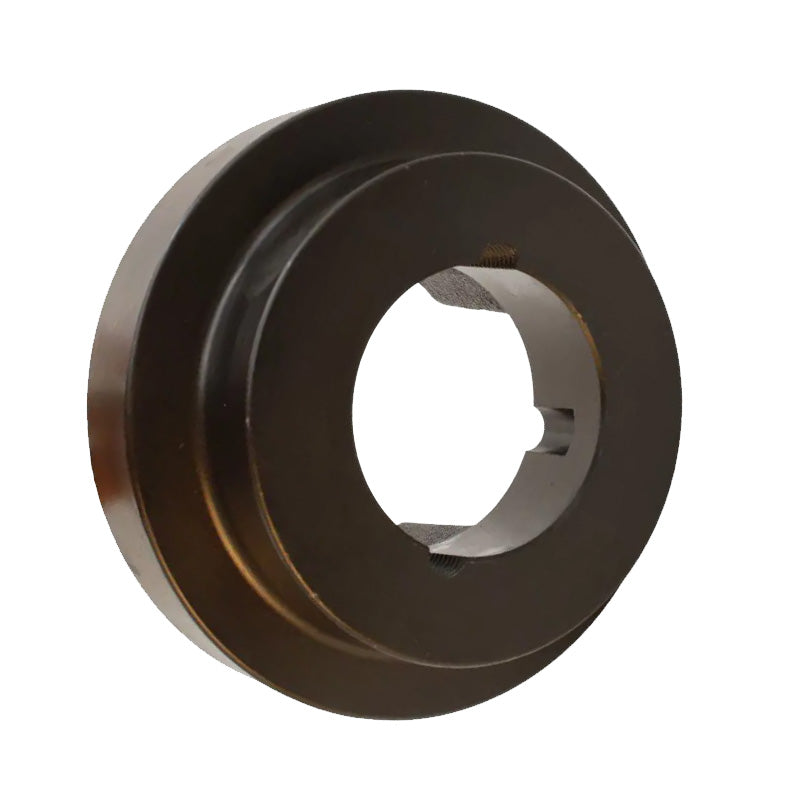

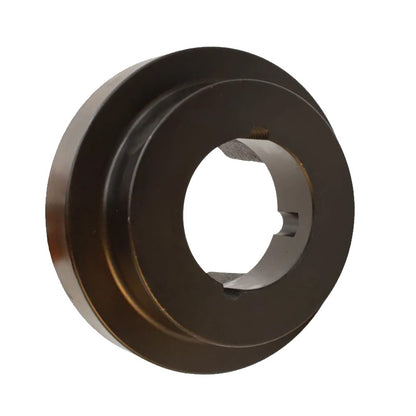

Major Branded HRC70F-MB HRC Coupling Single Flange Inner Facing Taper Bore Max Bush Bore 25mm / 1 inch
- Regular price
- CHF 9.00 ex VAT
- Sale price
- CHF 9.00
- Regular price
-
Quantity Price Breaks
Major Branded HRC70F-MB HRC Coupling Single Flange Inner Facing Taper Bore Max Bush Bore 25mm / 1 inch
- Regular price
- CHF 9.00 ex VAT
- Sale price
- CHF 9.00
- Regular price
-
Description
Branded HRC Coupling Single Flange Inner Facing Taper Bore: These semi-elastic couplings are designed for general use purpose use and they permit quick and easy assembly by means for a tapered locking bush fixing. The fully machined outside diameters allow alignment by simple straight edge methods. The shaft connection is "fail-safe" due to interacting dog design.
These coupling flanges have taper bores to accept tapered locking bushes, these will need to be purchased separately and are available with a wide range of standard bores to suit your application. The taper bores are inner facing where the larger diameter of the taper is on the same side of the coupling as the rubber drive element.
This is a half coupling. You require 2 x flanges and 1 x insert to create a full coupling assembly.
Do you need a Fire Resistant Antistatic (F.R.A.S) rubber insert. See links below.
