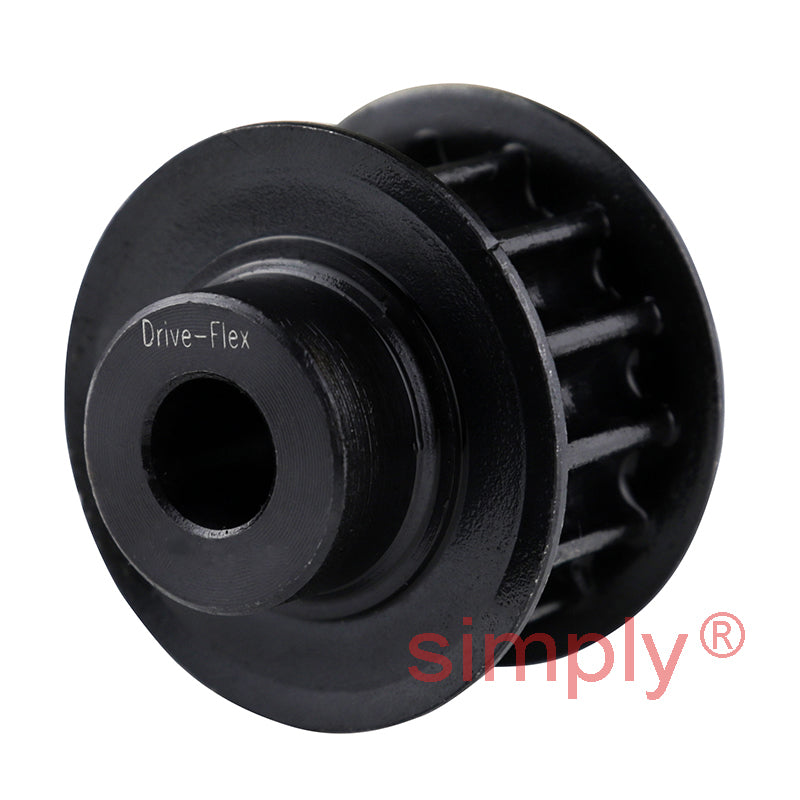

P64-14M-85F - 14mm Pitch 64 Tooth Flanged HTD Type Cast Iron Pilot Bore Timing Pulley for 85mm Wide Belts

SKU: HP64-14M-85F

P64-14M-85F - 14mm Pitch 64 Tooth Flanged HTD Type Cast Iron Pilot Bore Timing Pulley for 85mm Wide Belts

CHF 199.00 ex VAT
CHF 199.00
ex VAT
Equivalent to: 6414M85F
Not in stock

Quantity Price Breaks

3 CHF 177.11
5 CHF 167.16
9 CHF 165.17
19 CHF 163.18
49 CHF 161.19
74 CHF 159.20
99 CHF 149.25
199 CHF 147.26
249 CHF 145.27
499 CHF 143.28
999 CHF 139.30
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
P64-14M-85F - 14mm Pitch 64 Tooth Flanged HTD Type Cast Iron Pilot Bore Timing Pulley for 85mm Wide Belts
SKU: HP64-14M-85F

P64-14M-85F - 14mm Pitch 64 Tooth Flanged HTD Type Cast Iron Pilot Bore Timing Pulley for 85mm Wide Belts

CHF 199.00 ex VAT
CHF 199.00
ex VAT

Description

HTD Pilot Bore Timing Pulley: High Torque Drive (HTD) timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.

Technical

--- = Pulley Dimensions
Pitch = 14mm
Number of Teeth = 64
Type = 6F Pilot Bore
Dp = 285.21mm
De = 282.41mm
Df = 296mm
Dm = 150mm
F = 102mm
L = 102mm
Pilot Bore - nominal = 32mm
Weight = 26kg
