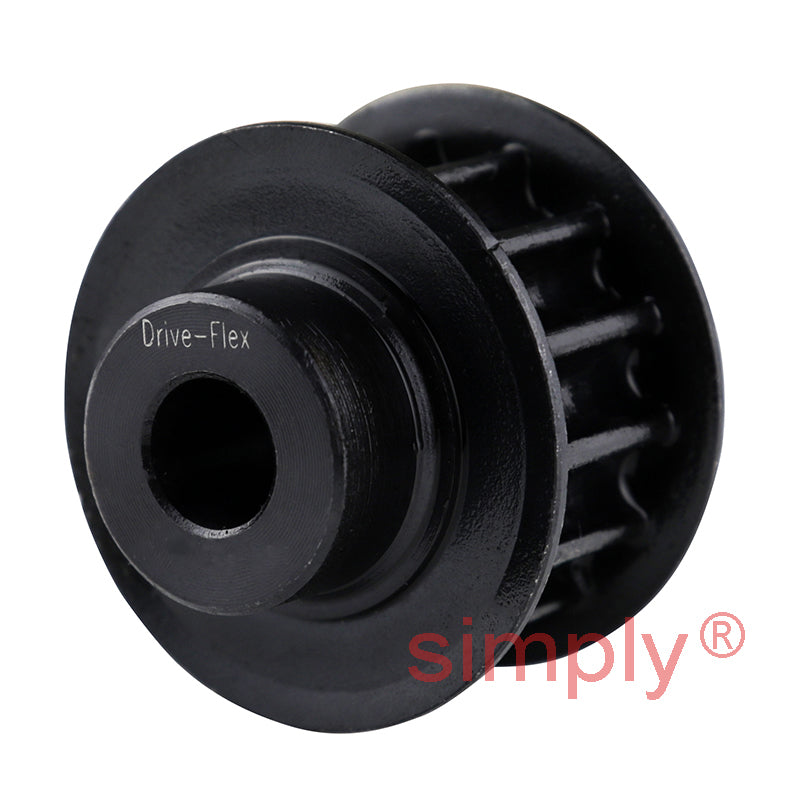

P48-14M-85F - 14mm Pitch 48 Tooth Flanged HTD Type Cast Iron Pilot Bore Timing Pulley for 85mm Wide Belts

SKU: HP48-14M-85F

P48-14M-85F - 14mm Pitch 48 Tooth Flanged HTD Type Cast Iron Pilot Bore Timing Pulley for 85mm Wide Belts

CHF 194.00 ex VAT
CHF 194.00
ex VAT
Equivalent to: 4814M85F
Not in stock

Quantity Price Breaks

3 CHF 172.66
5 CHF 162.96
9 CHF 161.02
19 CHF 159.08
49 CHF 157.14
74 CHF 155.20
99 CHF 145.50
199 CHF 143.56
249 CHF 141.62
499 CHF 139.68
999 CHF 135.80
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
P48-14M-85F - 14mm Pitch 48 Tooth Flanged HTD Type Cast Iron Pilot Bore Timing Pulley for 85mm Wide Belts
SKU: HP48-14M-85F

P48-14M-85F - 14mm Pitch 48 Tooth Flanged HTD Type Cast Iron Pilot Bore Timing Pulley for 85mm Wide Belts

CHF 194.00 ex VAT
CHF 194.00
ex VAT

Description

HTD Pilot Bore Timing Pulley: High Torque Drive (HTD) timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.

Technical

--- = Pulley Dimensions
Pitch = 14mm
Number of Teeth = 48
Type = 1F Pilot Bore
Dp = 213.9mm
De = 211.11mm
Df = 226mm
Dm = 150mm
F = 102mm
L = 117mm
Pilot Bore - nominal = 32mm
Weight = 27.58kg
