SKU: HP36-8M-85F

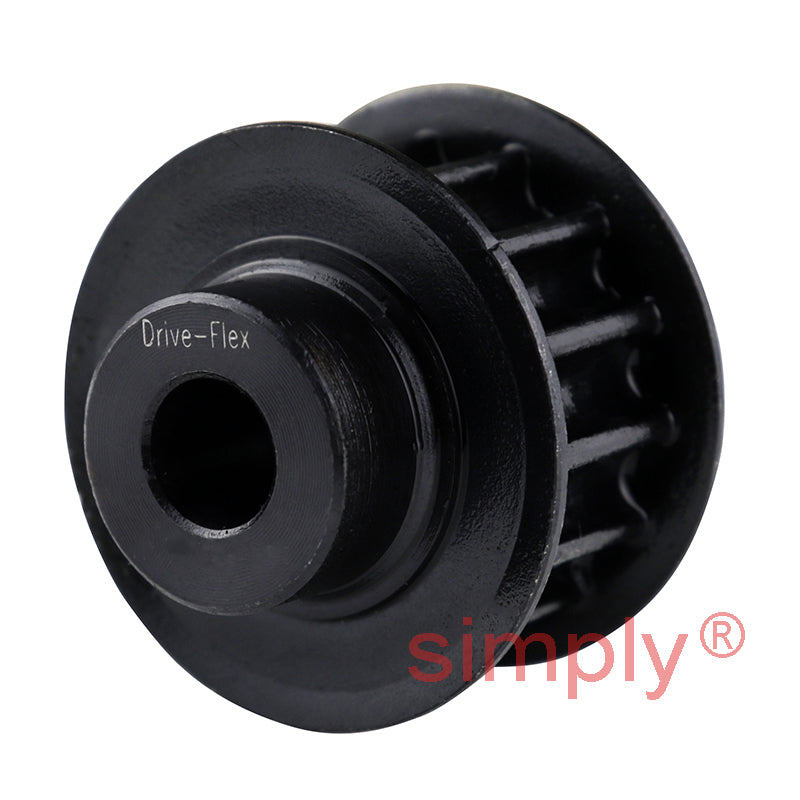

P36-8M-85F - 8mm Pitch 36 Tooth Flanged HTD Type Steel Pilot Bore Timing Pulley for 85mm Wide Belts
- Regular price
- CHF 52.00 ex VAT
- Sale price
- CHF 52.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 46.28
5
CHF 43.68
9
CHF 43.16
19
CHF 42.64
49
CHF 42.12
74
CHF 41.60
99
CHF 39.00
199
CHF 38.48
249
CHF 37.96
499
CHF 37.44
999
CHF 36.40
SKU:
HP36-8M-85F
P36-8M-85F - 8mm Pitch 36 Tooth Flanged HTD Type Steel Pilot Bore Timing Pulley for 85mm Wide Belts
- Regular price
- CHF 52.00 ex VAT
- Sale price
- CHF 52.00
- Regular price
-
Description
HTD Pilot Bore Timing Pulley: High Torque Drive (HTD) timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.
Technical

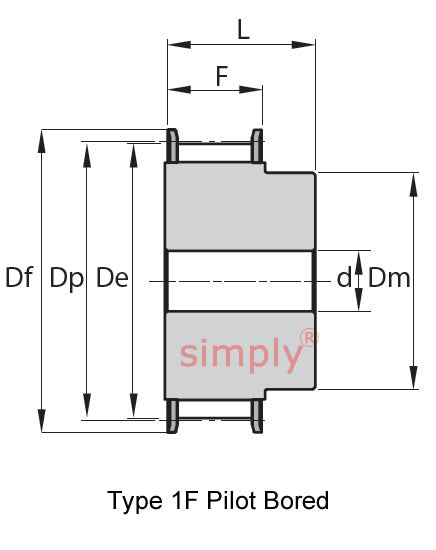

| --- | = | Pulley Dimensions |
| Pitch | = | 8mm |
| Number of Teeth | = | 36 |
| Type | = | 1F Pilot Bore |
| Dp | = | 91.67mm |
| De | = | 90.3mm |
| Df | = | 97mm |
| Dm | = | 70mm |
| F | = | 95mm |
| L | = | 105mm |
| Pilot Bore - nominal | = | 15mm |
| Weight | = | 4.70kg |
