SKU: HP26-8M-85F

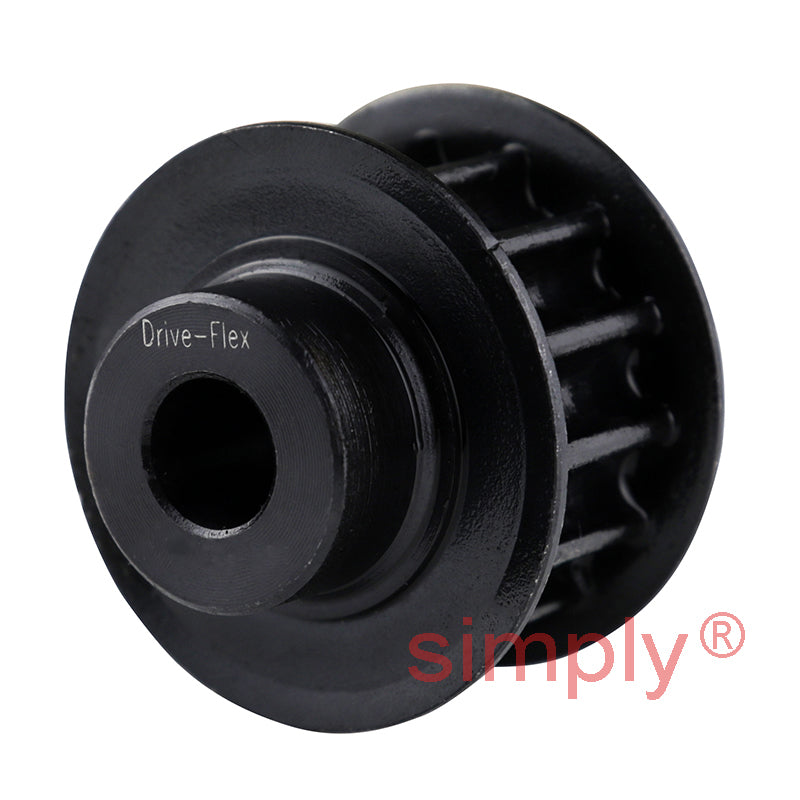

P26-8M-85F - 8mm Pitch 26 Tooth Flanged HTD Type Steel Pilot Bore Timing Pulley for 85mm Wide Belts
- Regular price
- CHF 33.00 ex VAT
- Sale price
- CHF 33.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 29.37
5
CHF 27.72
9
CHF 27.39
19
CHF 27.06
49
CHF 26.73
74
CHF 26.40
99
CHF 24.75
199
CHF 24.42
249
CHF 24.09
499
CHF 23.76
999
CHF 23.10
SKU:
HP26-8M-85F
P26-8M-85F - 8mm Pitch 26 Tooth Flanged HTD Type Steel Pilot Bore Timing Pulley for 85mm Wide Belts
- Regular price
- CHF 33.00 ex VAT
- Sale price
- CHF 33.00
- Regular price
-
Description
HTD Pilot Bore Timing Pulley: High Torque Drive (HTD) timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.
Technical
| --- | = | Pulley Dimensions |
| Pitch | = | 8mm |
| Number of Teeth | = | 26 |
| Type | = | 1F Pilot Bore |
| Dp | = | 66.21mm |
| De | = | 64.85mm |
| Df | = | 70mm |
| Dm | = | 48mm |
| F | = | 95mm |
| L | = | 105mm |
| Pilot Bore - nominal | = | 12mm |
| Weight | = | 2.30kg |
