SKU: HP15-5M-25F

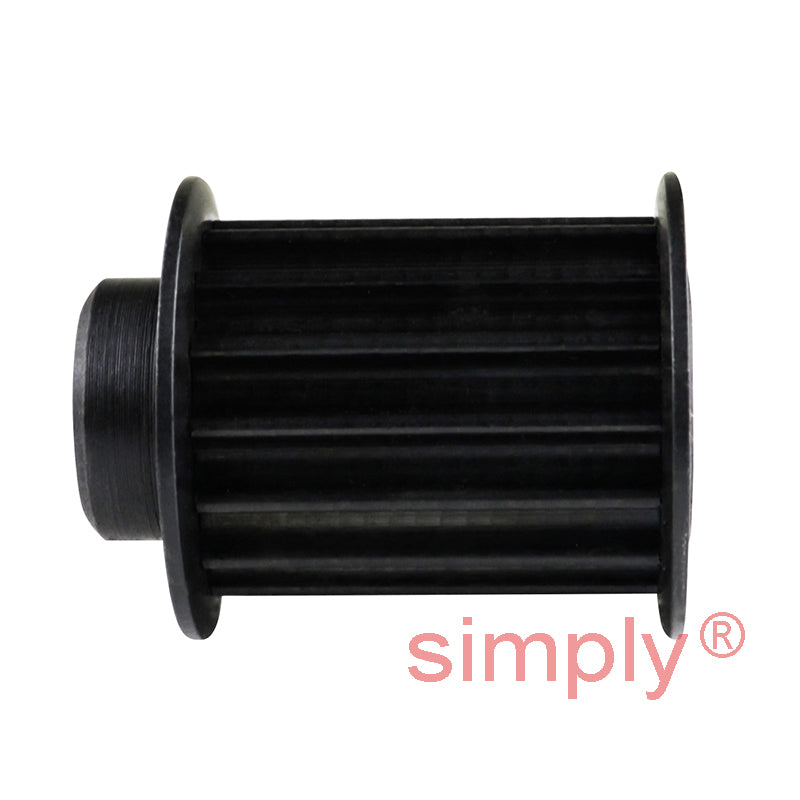

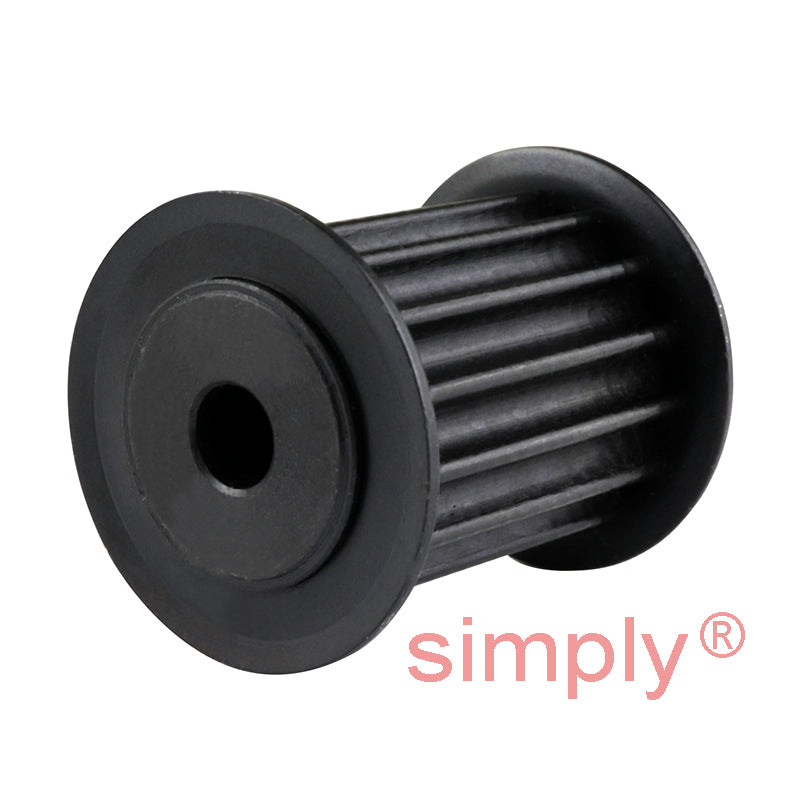

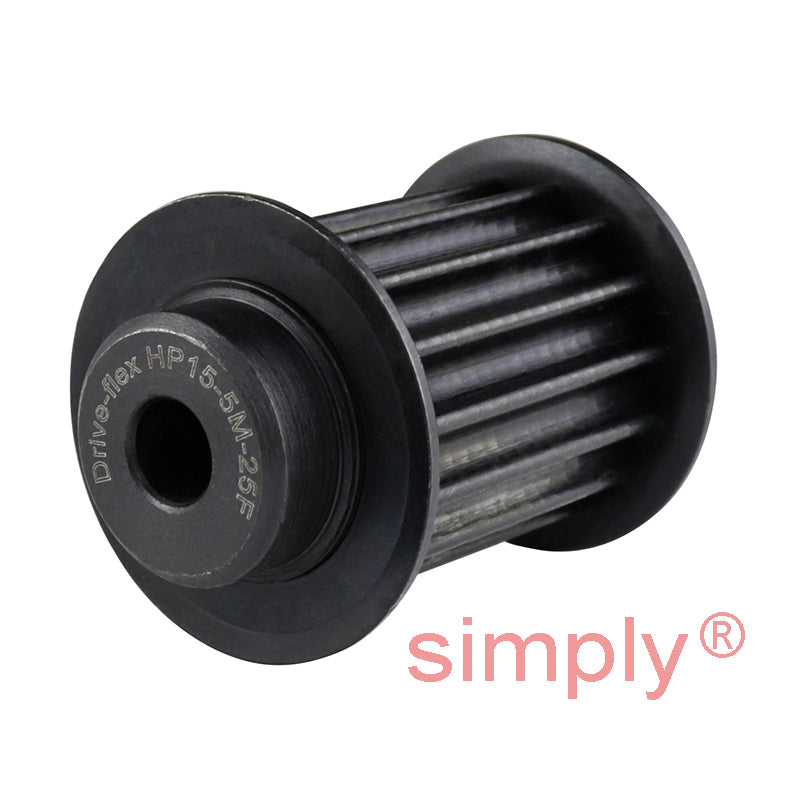

P15-5M-25F - 5mm Pitch 15 Tooth Flanged HTD Type Steel Pilot Bore Timing Pulley for 25mm Wide Belts
- Regular price
- CHF 13.00 ex VAT
- Sale price
- CHF 13.00
- Regular price
-
In stock
Quantity Price Breaks
3
CHF 11.57
5
CHF 10.92
9
CHF 10.79
19
CHF 10.66
49
CHF 10.53
74
CHF 10.40
99
CHF 9.75
199
CHF 9.62
249
CHF 9.49
499
CHF 9.36
999
CHF 9.10
SKU:
HP15-5M-25F
P15-5M-25F - 5mm Pitch 15 Tooth Flanged HTD Type Steel Pilot Bore Timing Pulley for 25mm Wide Belts
- Regular price
- CHF 13.00 ex VAT
- Sale price
- CHF 13.00
- Regular price
-
Description
HTD Pilot Bore Timing Pulley: High Torque Drive (HTD) timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.
Technical
| --- | = | Pulley Dimensions |
| Pitch | = | 5mm |
| Number of Teeth | = | 15 |
| Type | = | 1F Pilot Bore |
| Dp | = | 23.87mm |
| De | = | 22.73mm |
| Df | = | 28mm |
| Dm | = | 16mm |
| F | = | 30.5mm |
| L | = | 36mm |
| Pilot Bore - nominal | = | 6mm |
| Weight | = | 0.09kg |
