SKU: HK3512-MB

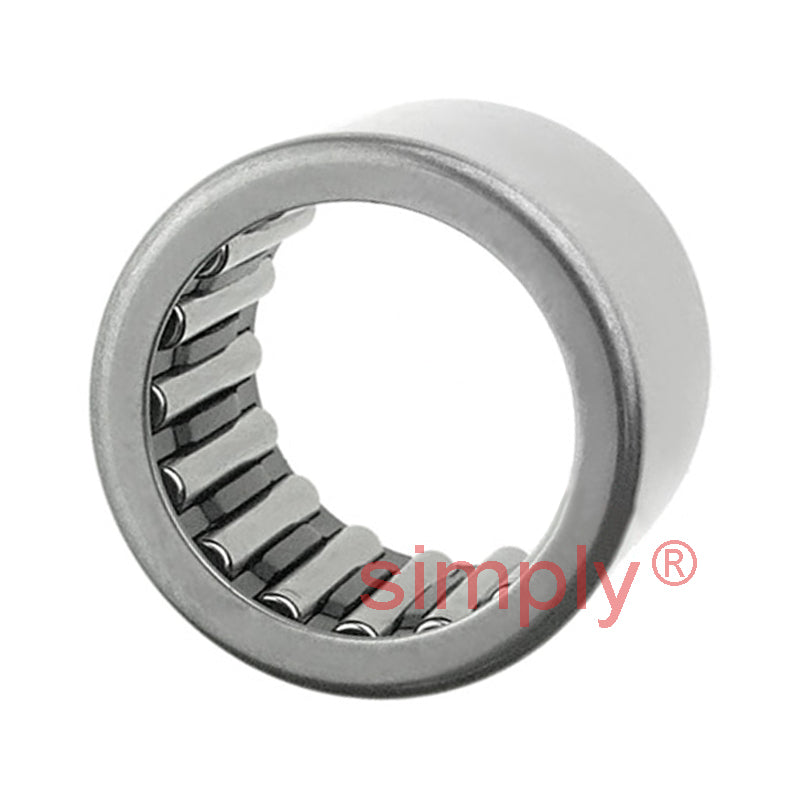

Major Brand HK3512 Drawn Cup Type Needle Roller Bearing with Two Open Ends 35x42x12mm
- Regular price
- CHF 9.00 ex VAT
- Sale price
- CHF 9.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 8.01
19
CHF 7.56
29
CHF 7.47
39
CHF 7.38
49
CHF 7.29
74
CHF 7.20
99
CHF 6.75
199
CHF 6.66
249
CHF 6.57
499
CHF 6.48
999
CHF 6.30
SKU:
HK3512-MB
Major Brand HK3512 Drawn Cup Type Needle Roller Bearing with Two Open Ends 35x42x12mm
- Regular price
- CHF 9.00 ex VAT
- Sale price
- CHF 9.00
- Regular price
-
Description
|
HK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 35mm |
| D | = | 42mm |
| C | = | 12mm |
| Dynamic load | = | 12500 N |
| Static load | = | 21600 N |
| Fatigue load limit Pu | = | 2450 N |
| Speed in grease | = | 5600 rpm |
| Speed in oil | = | 8000 rpm |
| r1r2 min | = | 0.8mm |
| Da max | = | 37mm |
| ra max | = | 0.8mm |
| Seal | = | G/SD35x42x4 |
| Weight | = | 27 g |
