SKU: HGJ30-JCS

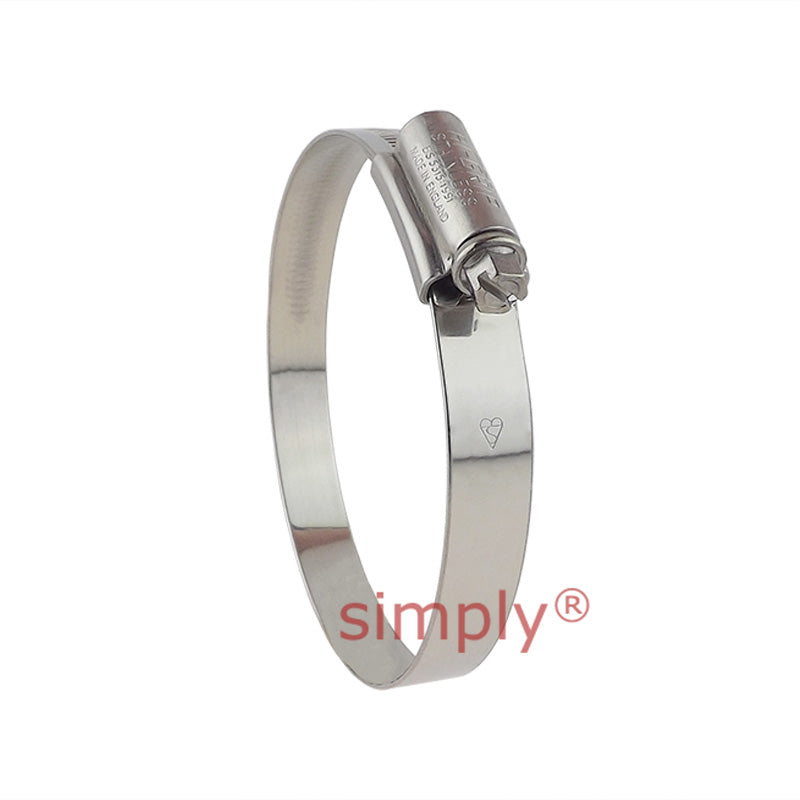

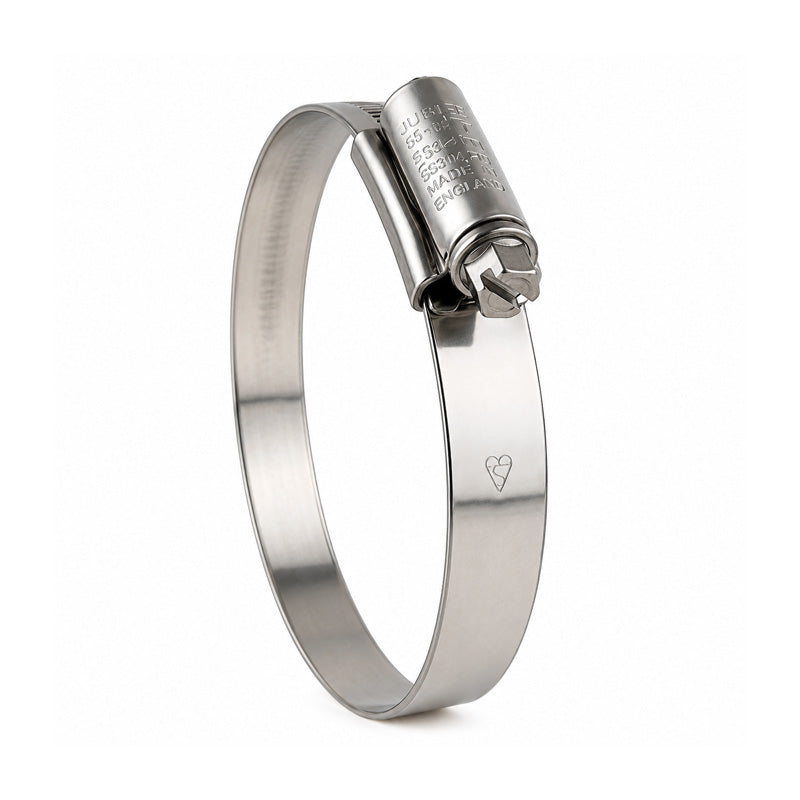

JCS HGJ30 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 22-30mm Band Width 13mm
- Regular price
- CHF 9.00 ex VAT
- Sale price
- CHF 9.00
- Regular price
-
In stock
Quantity Price Breaks
3
CHF 8.01
5
CHF 7.56
9
CHF 7.47
19
CHF 7.38
49
CHF 7.29
74
CHF 7.20
99
CHF 6.75
199
CHF 6.66
249
CHF 6.57
499
CHF 6.48
999
CHF 6.30
SKU:
HGJ30-JCS
JCS HGJ30 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 22-30mm Band Width 13mm
- Regular price
- CHF 9.00 ex VAT
- Sale price
- CHF 9.00
- Regular price
-
Description
316 Stainless Steel Hi-Grip Worm Drive Hose Clips: Principally aimed at the marine, food, petrochemical and pharmaceutical industries, the Hi-Grip 316 hose clip is made entirely from BS316 EN 1.4401/1.4578 austenitic stainless steel, providing the same superior performance as the rest of the Hi-Grip range but with maximum corrosion resistance. Lloyd’s Register Type Approved for marine, offshore and industrial use. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, which has the highest requirements of any of the international standards and tests sealing ability, clamping force and torque.
Technical

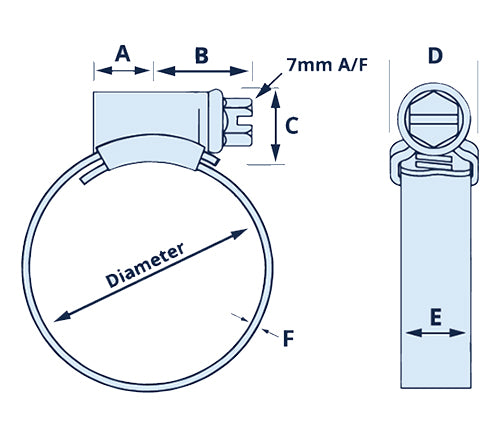

| BS No. | = | 30 |
| Adjustment Range (mm) | = | 22-30mm |
| Adjustment Range (inch) | = | 7/8 - 1-1/8 inch |
| A | = | 8mm |
| B | = | 15mm |
| C | = | 12mm |
| D | = | 15mm |
| E | = | 13mm |
| F | = | 0.9mm |
| Screw | = | 7mm A/F |
| Recommended Torque Nm | = | 5Nm |
| Recommended Torque lb-in | = | 45lb-in |
