SKU: HF.1216.MB

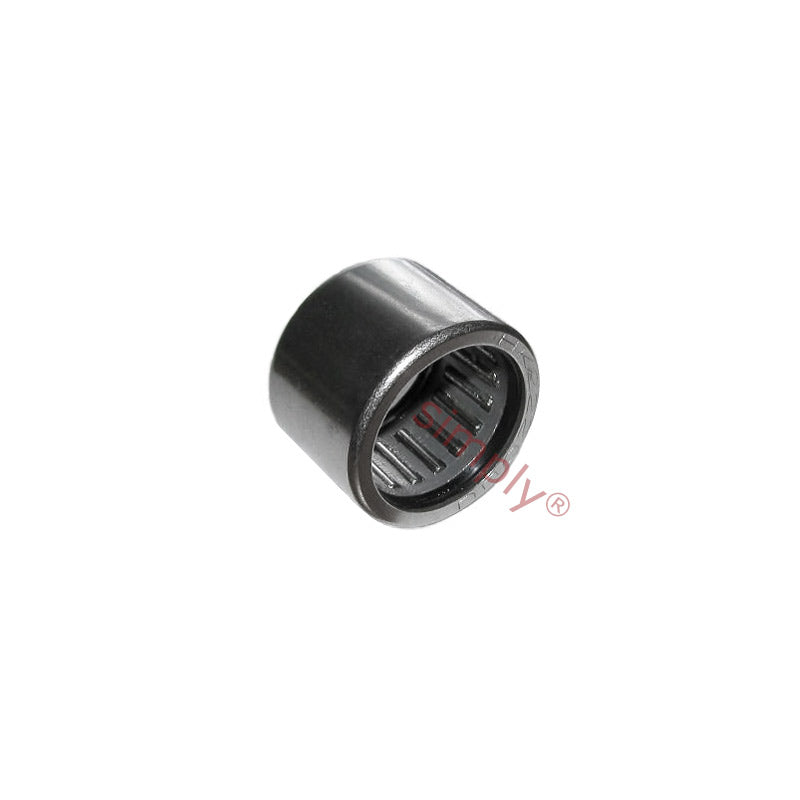

Branded HF1216 Needle Roller Clutch Type One Way Bearing 12x18x16mm
- Regular price
- CHF 16.00 ex VAT
- Sale price
- CHF 16.00
- Regular price
-
Quantity Price Breaks
Branded HF1216 Needle Roller Clutch Type One Way Bearing 12x18x16mm
- Regular price
- CHF 16.00 ex VAT
- Sale price
- CHF 16.00
- Regular price
-
Description
Clutch Needle Roller Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease.
They can be used together with needle roller bearings of the HK and BK series and are dimensionally the same and are available for shaft diameters from 6mm to 35mm
Benefits: High indexing accuracy, transmit torques in one direction, work at –10 deg C to +70 deg C
Please note: This bearing has a special none standard bore size
Technical
| Fw | = | 12mm |
| D | = | 18mm |
| C | = | 16mm |
| Tolerance | = | 0.3mm |
| r min | = | 0.3 |
| Torque | = | 12.2 N m |
| Speed (rotating shaft) | = | 11000 rpm |
| Speed (rotating outer ring) | = | 8000 rpm |
| Weight | = | 11 g |
