SKU: HCFL218-56

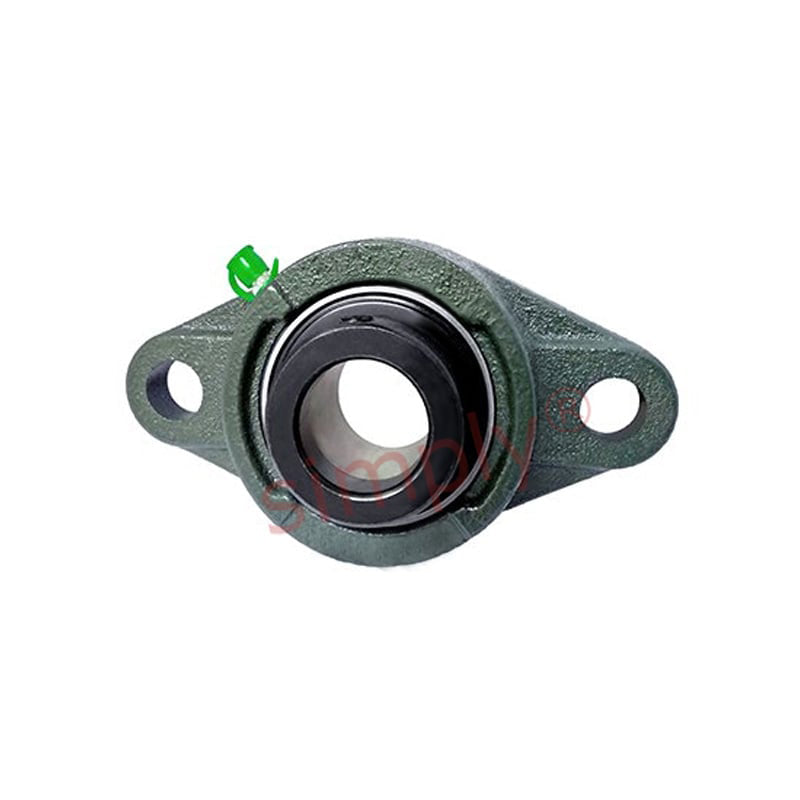

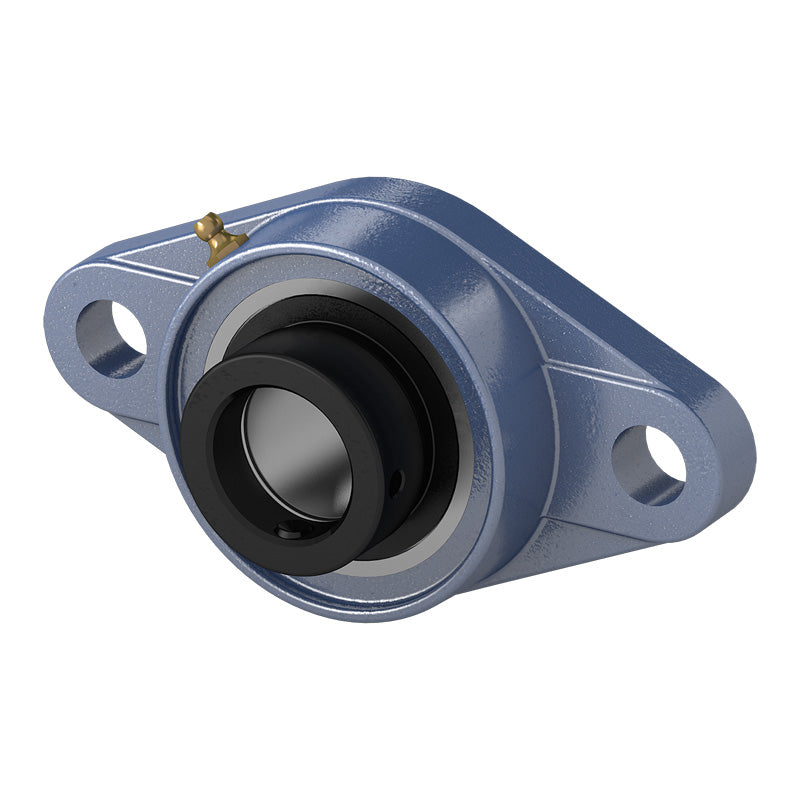

HCFL218-56 Imperial Two Bolt Cast Iron Oval Housing with 3-1/2 inch Eccentric Collar Insert
- Regular price
- CHF 154.00 ex VAT
- Sale price
- CHF 154.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 137.06
4
CHF 129.36
9
CHF 127.82
19
CHF 126.28
49
CHF 124.74
99
CHF 123.20
499
CHF 115.50
999
CHF 113.96
1999
CHF 112.42
2999
CHF 110.88
4999
CHF 107.80
SKU:
HCFL218-56
HCFL218-56 Imperial Two Bolt Cast Iron Oval Housing with 3-1/2 inch Eccentric Collar Insert
- Regular price
- CHF 154.00 ex VAT
- Sale price
- CHF 154.00
- Regular price
-
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
Technical
| d | = | 3-1/2 inch |
| a | = | 12-19/32 inch |
| e | = | 10-7/16 inch |
| i | = | 1-37/64 inch |
| g | = | 15/16 inch |
| l | = | 2-11/16 inch |
| s | = | 63/64 inch |
| b | = | 8-1/16 inch |
| z | = | 8-15/32 inch |
| B1 | = | 3.7795 inch |
| n | = | 1.563 inch |
| Bolt size | = | 7/8 inch |
| Bearing no | = | HC218-56 |
| Housing no | = | FL218 |
| Weight | = | 10.0409 kg |
