SKU: GSH30-2RSR-B+H206-INA

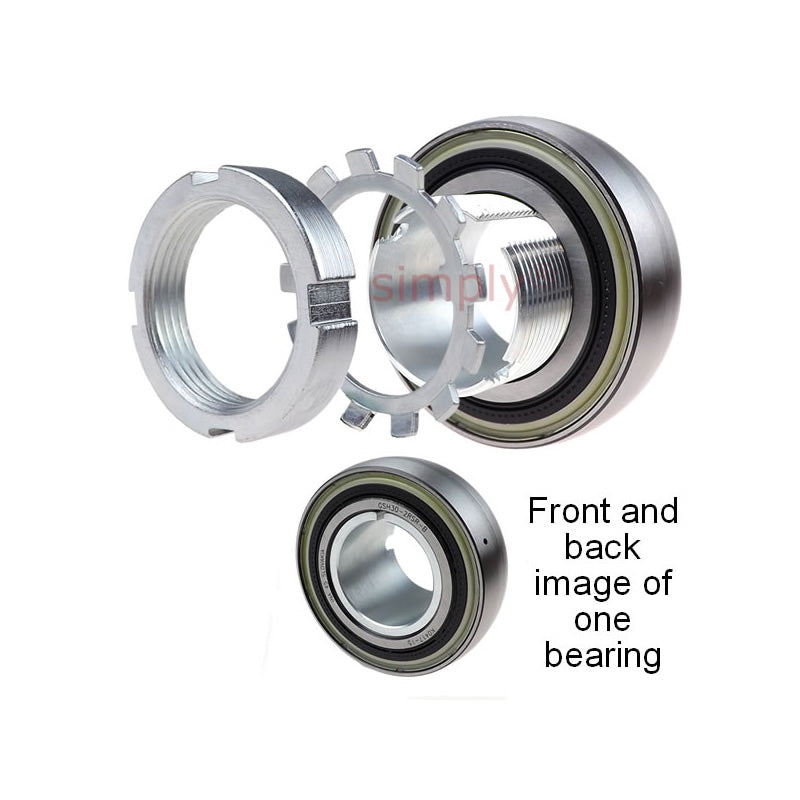

INA GSH30XL2RSRB Metric Spherical Outer Bearing Insert with RSR Seals and Adaptor Sleeve fits 30mm Shafts
- Regular price
- CHF 53.00 ex VAT
- Sale price
- CHF 53.00
- Regular price
-
Not in stock
No price breaks available for this product.
SKU:
GSH30-2RSR-B+H206-INA
INA GSH30XL2RSRB Metric Spherical Outer Bearing Insert with RSR Seals and Adaptor Sleeve fits 30mm Shafts
- Regular price
- CHF 53.00 ex VAT
- Sale price
- CHF 53.00
- Regular price
-
Description
|
INA GSH..-2RSR-B Series Inserts: Bearing insert with spherical outer race and RSR seals. The inner ring is located on the shaft by an adaptor sleeve with a locknut and a tab washer. The adaptor sleeve and locknut give concentric, force locking location of the bearing inner ring on the shaft. This results in speeds that can be achieved the same as with deep groove ball bearings. These bearings also give quieter running than normal radial insert ball bearings. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C Benefits: Can be re-lubricated, quieter running than normal bearing inserts, compensation of misalignment. |
Technical
| d | = | 30mm |
| Dsp | = | 62mm |
| B1 | = | 32mm |
| B | = | 18mm |
| C | = | 18mm |
| Ca | = | 4.7mm |
| S | = | 9mm |
| Weight | = | 0.27 kg |
| Dynamic load Cr | = | 18900 N |
| Static load | = | 11600 N |
| Limiting speed | = | 6600 rpm |
