SKU: GRA35-XL-INA

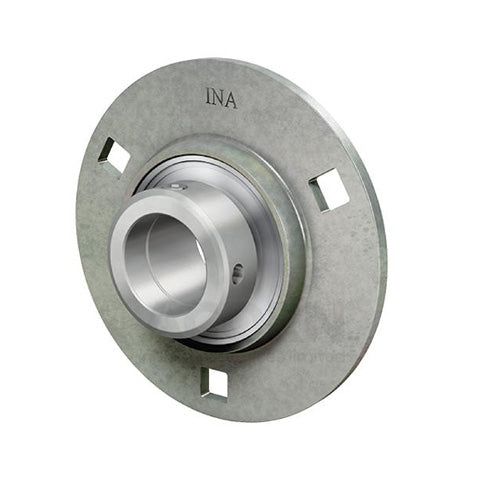

INA GRA35XL Three Bolt Sheet Steel Round Housing with Eccentric Collar Insert 35mm Bore
- Regular price
- CHF 44.00 ex VAT
- Sale price
- CHF 44.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 39.16
19+
CHF 36.96
29+
CHF 36.52
39+
CHF 36.08
49+
CHF 35.64
74+
CHF 35.20
99+
CHF 33.00
199+
CHF 32.56
249+
CHF 32.12
499+
CHF 31.68
999+
CHF 30.80
SKU:
GRA35-XL-INA
INA GRA35XL Three Bolt Sheet Steel Round Housing with Eccentric Collar Insert 35mm Bore
- Regular price
- CHF 44.00 ex VAT
- Sale price
- CHF 44.00
- Regular price
-
Description
|
INA Round Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. The housings are screw mounted on the adjacent construction. Benefits: Can be re-lubricated via a lubrication nipple, suitable for a lightweight construction, eccentric collar, tolerates misalignment of the shaft. |
