SKU: GLE45-KRR-B-INA

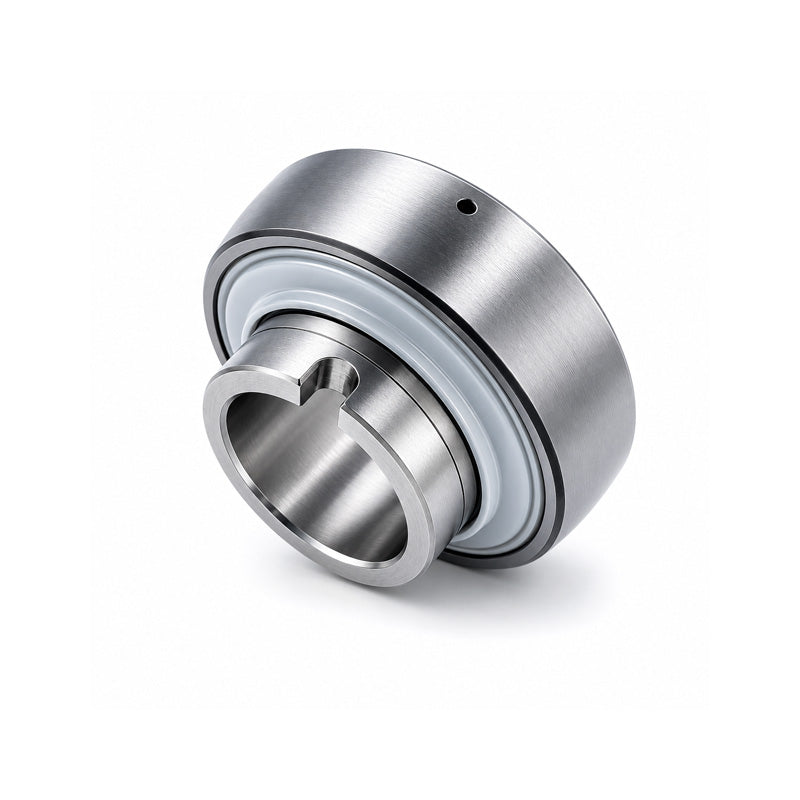

INA GLE45XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 45x85x42.9mm
- Regular price
- CHF 76.00 ex VAT
- Sale price
- CHF 76.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 67.64
19+
CHF 63.84
29+
CHF 63.08
39+
CHF 62.32
49+
CHF 61.56
74+
CHF 60.80
99+
CHF 57.00
199+
CHF 56.24
249+
CHF 55.48
499+
CHF 54.72
999+
CHF 53.20
SKU:
GLE45-KRR-B-INA
INA GLE45XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 45x85x42.9mm
- Regular price
- CHF 76.00 ex VAT
- Sale price
- CHF 76.00
- Regular price
-
Description
|
INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
