SKU: GEH70ES2RS.EU

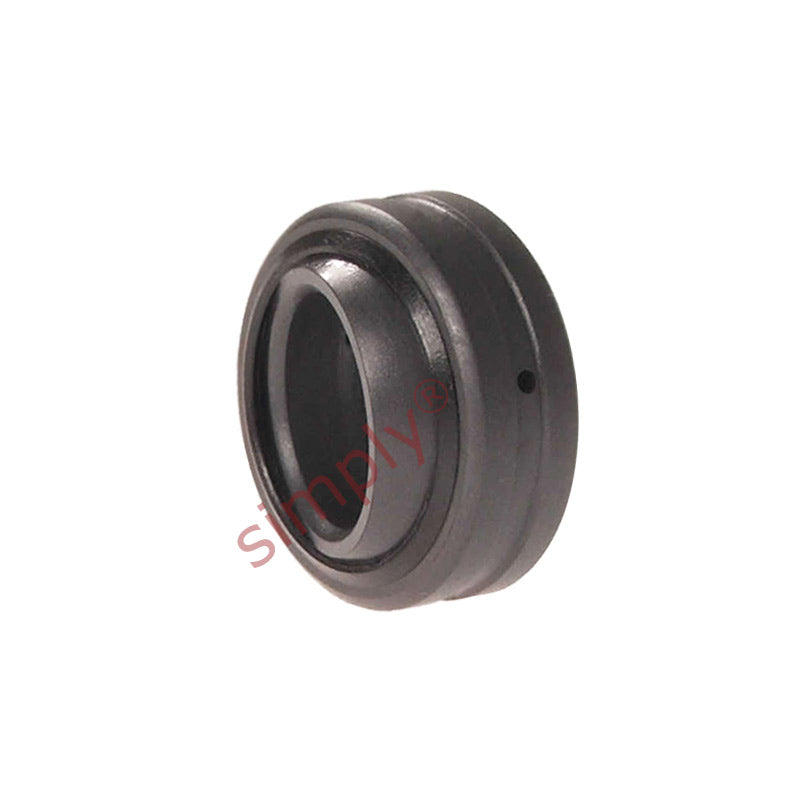

GEH70ES2RS Rubber Sealed Spherical Plain Bearing 70x120x70x45mm
- Regular price
- CHF 104.00 ex VAT
- Sale price
- CHF 104.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 92.56
19
CHF 87.36
29
CHF 86.32
39
CHF 85.28
49
CHF 84.24
74
CHF 83.20
99
CHF 78.00
199
CHF 76.96
249
CHF 75.92
499
CHF 74.88
999
CHF 72.80
SKU:
GEH70ES2RS.EU
GEH70ES2RS Rubber Sealed Spherical Plain Bearing 70x120x70x45mm
- Regular price
- CHF 104.00 ex VAT
- Sale price
- CHF 104.00
- Regular price
-
Description
|
Rubber Sealed Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel, rubber seals Note: The outer raceway may have as part of the manufacturing process a split or crack |
Technical
| d | = | 70mm |
| D | = | 120mm |
| B | = | 70mm |
| C | = | 45mm |
| dk | = | 105mm |
| rs min | = | 1mm |
| r1s min | = | 1mm |
| Angle & | = | alpha |
| = | 16& | |
| deg | = | |
| Dynamic load Co | = | 400 kN |
| Static load Cor | = | 2000 kN |
| Weight | = | 3.4 kg |
