SKU: GE45ES-CDX

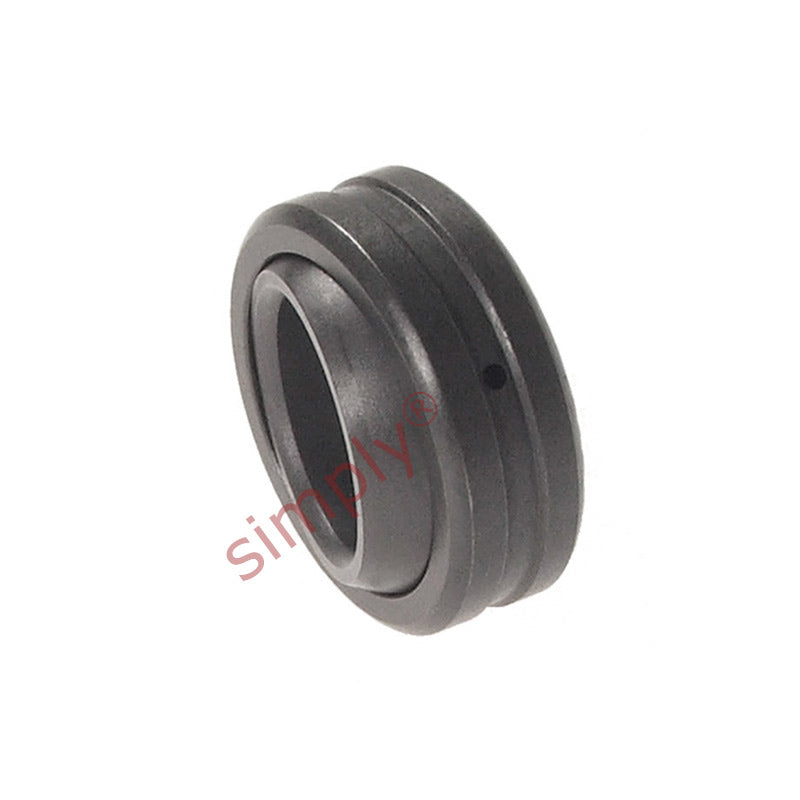

Codex GE45ES Spherical Plain Bearing Steel / Steel 45x68x25x32mm
- Regular price
- CHF 27.00 ex VAT
- Sale price
- CHF 27.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 24.03
19
CHF 22.68
29
CHF 22.41
39
CHF 22.14
49
CHF 21.87
74
CHF 21.60
99
CHF 20.25
199
CHF 19.98
249
CHF 19.71
499
CHF 19.44
999
CHF 18.90
SKU:
GE45ES-CDX
Codex GE45ES Spherical Plain Bearing Steel / Steel 45x68x25x32mm
- Regular price
- CHF 27.00 ex VAT
- Sale price
- CHF 27.00
- Regular price
-
Description
|
GE..ES Series Spherical Plain Bearings: This series is classed as radial spherical plain bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these spherical plain bearings are unsealed and require maintenance from time to time in the form of re-lubrication via an annular lubrication groove around its outer and inner rings. Dependent on installation design the lubricant may be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are metric sized spherical plain bearings. The bearings are manganese phosphated and the sliding contact surface is then treated with a running-in lubricant. This reduces friction and wear during the running-in period. Application: Suitable for heavy static, shock or alternating loads. A characteristic of Steel / Steel spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load Benefits: Re-lubricate-able, cleanable. |

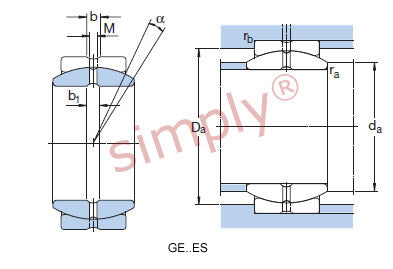

Technical
| d | = | 45mm |
| D | = | 68mm |
| B | = | 32mm |
| C | = | 25mm |
| Max misalignment angle | = | 7 degrees |
| Dynamic load | = | 127 kN |
| Static load | = | 637 kN |
| dk | = | 60mm |
| b | = | 4.6mm |
| b1 | = | 4.6mm |
| M | = | 3mm |
| r1 min | = | 0.6mm |
| r2 min | = | 1mm |
| da min | = | 19.4mm |
| da max | = | 50.8mm |
| Da max | = | 63.6mm |
| Da min | = | 57mm |
| ra max | = | 0.6mm |
| rb max | = | 1mm |
| Weight | = | 0.427 kg |
