SKU: GE110ES.EU

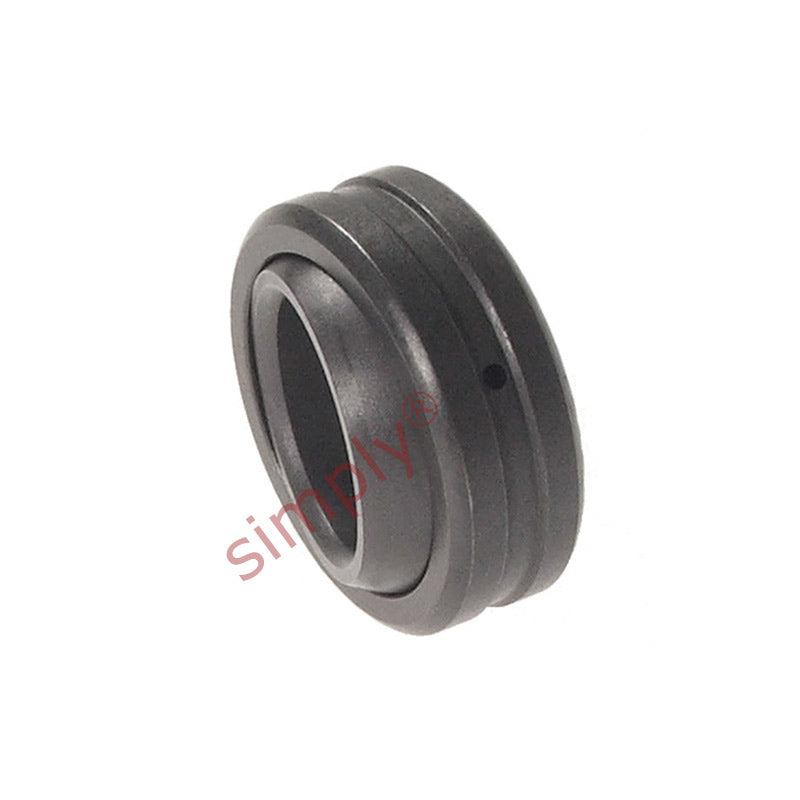

GE110ES Spherical Plain Bearing 110x160x70x55mm
- Regular price
- CHF 155.00 ex VAT
- Sale price
- CHF 155.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 137.95
19
CHF 130.20
29
CHF 128.65
39
CHF 127.10
49
CHF 125.55
74
CHF 124.00
99
CHF 116.25
199
CHF 114.70
249
CHF 113.15
499
CHF 111.60
999
CHF 108.50
SKU:
GE110ES.EU
GE110ES Spherical Plain Bearing 110x160x70x55mm
- Regular price
- CHF 155.00 ex VAT
- Sale price
- CHF 155.00
- Regular price
-
Description
|
Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel Note: The outer raceway may have as part of the manufacturing process a split or crack |

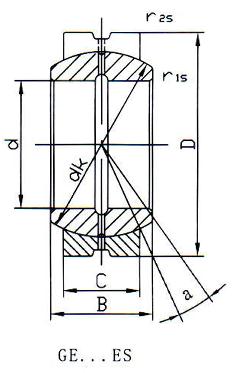

Technical
| d | = | 110mm |
| D | = | 160mm |
| B | = | 70mm |
| C | = | 55mm |
| dk | = | 140mm |
| rs min | = | 1mm |
| r1s min | = | 1mm |
| Angle & | = | alpha |
| = | 6& | |
| deg | = | |
| Dynamic load Co | = | 654 kN |
| Static load Cor | = | 3270 kN |
| Weight | = | 4.82 kg |
