SKU: FYT50TF/VA228-SKF

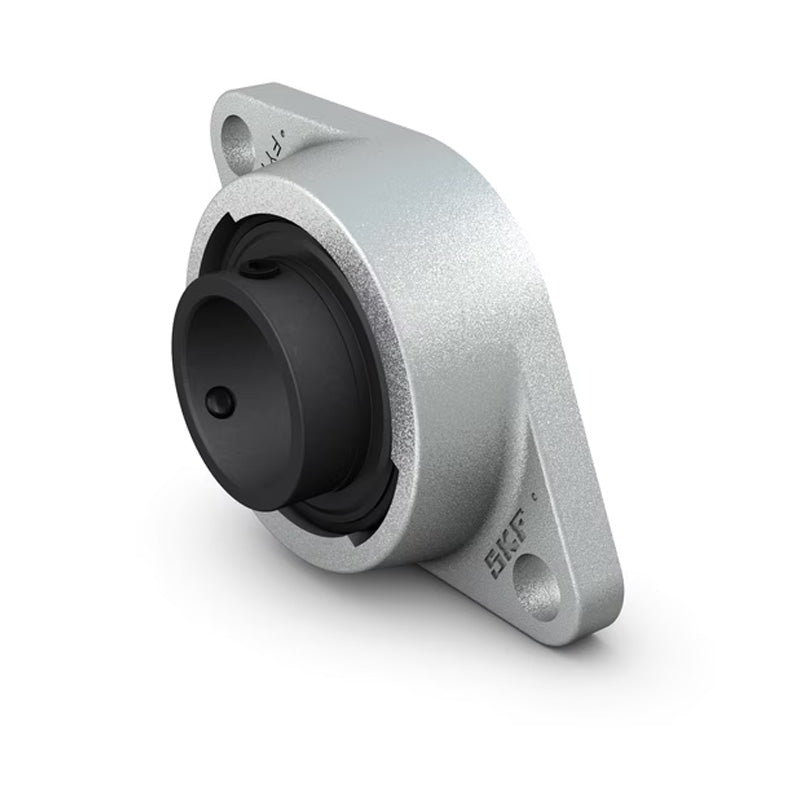

SKF FYT50TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 50mm
- Regular price
- CHF 433.00 ex VAT
- Sale price
- CHF 433.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 385.37
19+
CHF 363.72
29+
CHF 359.39
39+
CHF 355.06
49+
CHF 350.73
74+
CHF 346.40
99+
CHF 324.75
199+
CHF 320.42
249+
CHF 316.09
499+
CHF 311.76
999+
CHF 303.10
SKU:
FYT50TF/VA228-SKF
SKF FYT50TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 50mm
- Regular price
- CHF 433.00 ex VAT
- Sale price
- CHF 433.00
- Regular price
-
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
Technical
| d | = | 50mm |
| A1 | = | 43mm |
| A2 | = | 15mm |
| B | = | 51.6mm |
| H | = | 189mm |
| J | = | 157.2mm |
| L | = | 116mm |
| N | = | 15.9mm |
| G | = | 14mm |
| T | = | 60.6mm |
| Dynamic load C | = | 35.1 kN |
| Static load Co | = | 23.2 kN |
| Weight | = | 2.24 kg |
