SKU: FYT45TF/VA228-SKF

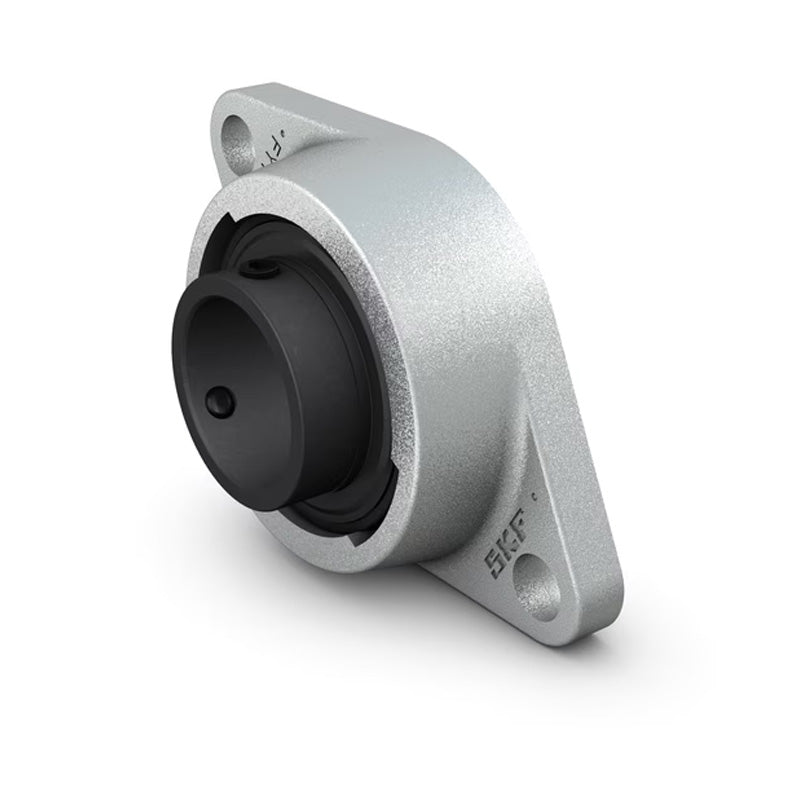

SKF FYT45TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 45mm
- Regular price
- CHF 309.00 ex VAT
- Sale price
- CHF 309.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 275.01
19+
CHF 259.56
29+
CHF 256.47
39+
CHF 253.38
49+
CHF 250.29
74+
CHF 247.20
99+
CHF 231.75
199+
CHF 228.66
249+
CHF 225.57
499+
CHF 222.48
999+
CHF 216.30
SKU:
FYT45TF/VA228-SKF
SKF FYT45TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 45mm
- Regular price
- CHF 309.00 ex VAT
- Sale price
- CHF 309.00
- Regular price
-
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
Technical
| d | = | 45mm |
| A1 | = | 39mm |
| A2 | = | 14mm |
| B | = | 49.2mm |
| H | = | 178.5mm |
| J | = | 148.5mm |
| L | = | 111mm |
| N | = | 15.9mm |
| G | = | 14mm |
| T | = | 54.2mm |
| Dynamic load C | = | 33.2 kN |
| Static load Co | = | 21.6 kN |
| Weight | = | 1.8 kg |
