SKU: FYT20TF/VA228-SKF

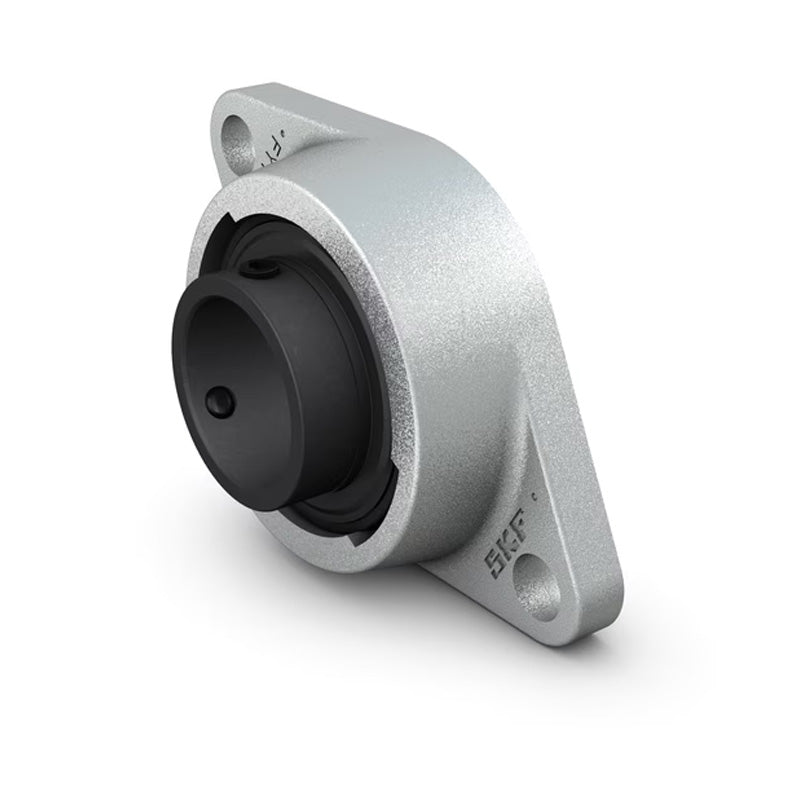

SKF FYT20TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 20mm
- Regular price
- CHF 131.00 ex VAT
- Sale price
- CHF 131.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 116.59
19+
CHF 110.04
29+
CHF 108.73
39+
CHF 107.42
49+
CHF 106.11
74+
CHF 104.80
99+
CHF 98.25
199+
CHF 96.94
249+
CHF 95.63
499+
CHF 94.32
999+
CHF 91.70
SKU:
FYT20TF/VA228-SKF
SKF FYT20TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 20mm
- Regular price
- CHF 131.00 ex VAT
- Sale price
- CHF 131.00
- Regular price
-
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
Technical
| d | = | 20mm |
| A1 | = | 24.6mm |
| A2 | = | 11.11mm |
| B | = | 31mm |
| H | = | 112mm |
| J | = | 89.7mm |
| L | = | 60.3mm |
| N | = | 11.1mm |
| G | = | 10mm |
| T | = | 32.6mm |
| Dynamic load C | = | 12.7 kN |
| Static load Co | = | 6.55 kN |
| Weight | = | 0.5 kg |
