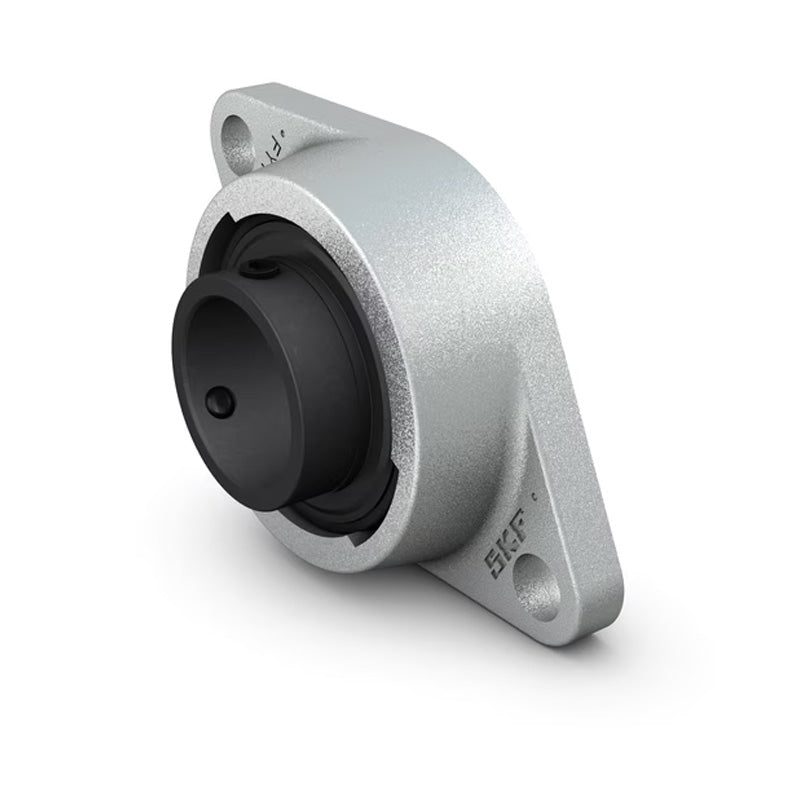

SKF FYT134TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-3/4 inch

SKU: FYT1.3/4TF/VA228-SKF

SKF FYT134TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-3/4 inch

CHF 306.00 ex VAT
CHF 306.00
ex VAT
In stock

Quantity Price Breaks

10+ CHF 272.34
19+ CHF 257.04
29+ CHF 253.98
39+ CHF 250.92
49+ CHF 247.86
74+ CHF 244.80
99+ CHF 229.50
199+ CHF 226.44
249+ CHF 223.38
499+ CHF 220.32
999+ CHF 214.20
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
SKF FYT134TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-3/4 inch
SKU: FYT1.3/4TF/VA228-SKF

SKF FYT134TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-3/4 inch

CHF 306.00 ex VAT
CHF 306.00
ex VAT

Description

SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius

Technical

d = 1-3/4 inch
A1 = 39mm
A2 = 14mm
B = 49.2mm
H = 178.5mm
J = 148.5mm
L = 111mm
N = 15.9mm
G = 14mm
T = 54.2mm
Static load Co = 21.6 kN
Weight = 1.8 kg
