SKU: FY60TF/VA228-SKF

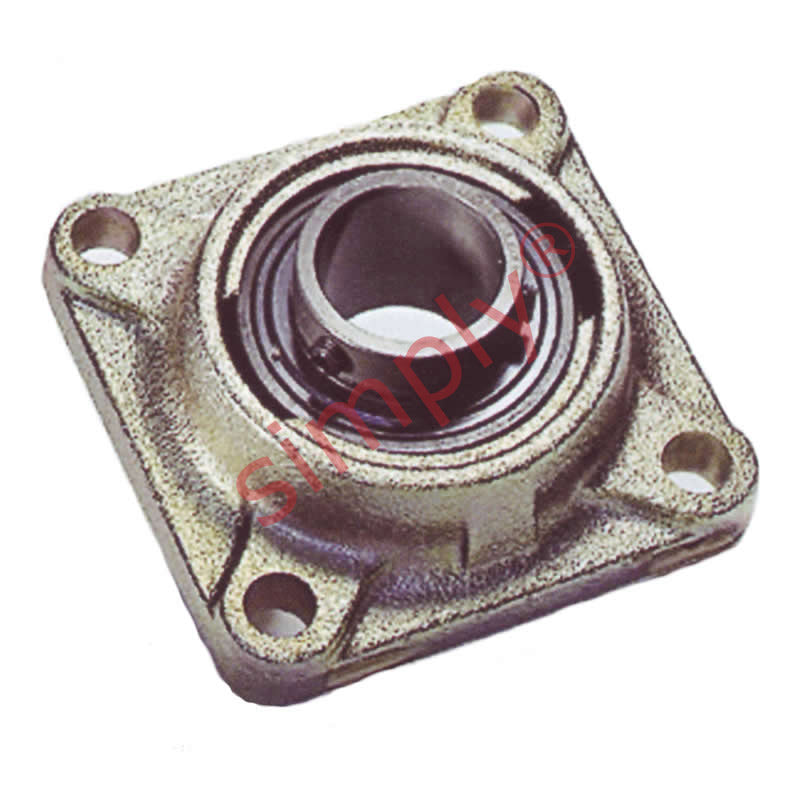

SKF FY60TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 60mm
- Regular price
- CHF 921.00 ex VAT
- Sale price
- CHF 921.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 819.69
19+
CHF 773.64
29+
CHF 764.43
39+
CHF 755.22
49+
CHF 746.01
74+
CHF 736.80
99+
CHF 690.75
199+
CHF 681.54
249+
CHF 672.33
499+
CHF 663.12
999+
CHF 644.70
SKU:
FY60TF/VA228-SKF
SKF FY60TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 60mm
- Regular price
- CHF 921.00 ex VAT
- Sale price
- CHF 921.00
- Regular price
-
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
Technical
| d | = | 60mm |
| A1 | = | 52mm |
| A2 | = | 17mm |
| B | = | 65.1mm |
| J | = | 143mm |
| L | = | 175mm |
| N | = | 19mm |
| G | = | 16mm |
| T | = | 73.7mm |
| Dynamic load C | = | 52.7 kN |
| Static load Co | = | 36 kN |
| Weight | = | 4.65 kg |
