SKU: FY55TF/VA228-SKF

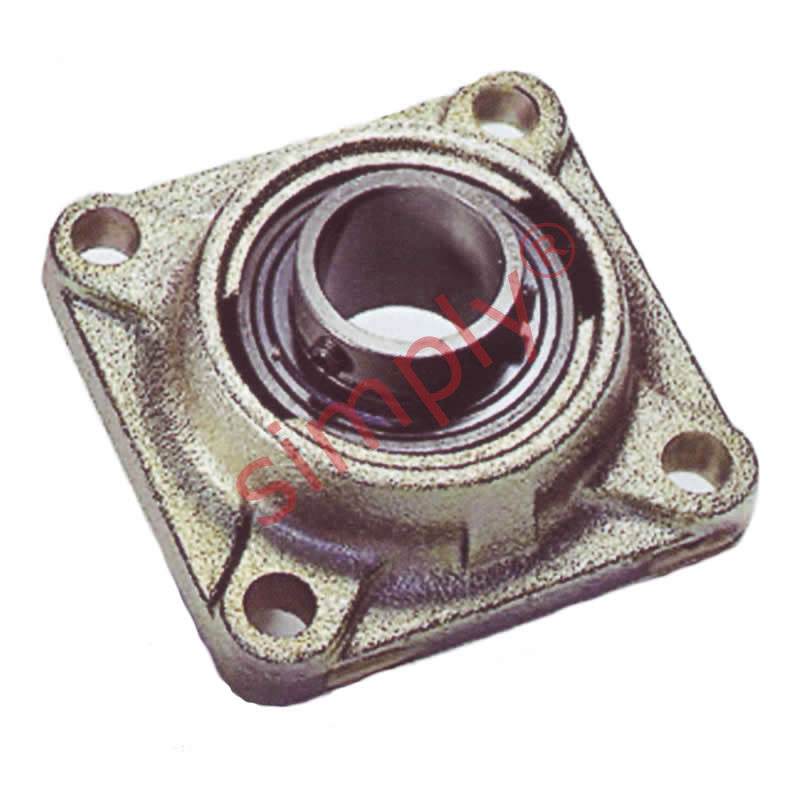

SKF FY55TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 55mm
- Regular price
- CHF 446.00 ex VAT
- Sale price
- CHF 446.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 396.94
19+
CHF 374.64
29+
CHF 370.18
39+
CHF 365.72
49+
CHF 361.26
74+
CHF 356.80
99+
CHF 334.50
199+
CHF 330.04
249+
CHF 325.58
499+
CHF 321.12
999+
CHF 312.20
SKU:
FY55TF/VA228-SKF
SKF FY55TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 55mm
- Regular price
- CHF 446.00 ex VAT
- Sale price
- CHF 446.00
- Regular price
-
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
Technical
| d | = | 55mm |
| A1 | = | 47.5mm |
| A2 | = | 16mm |
| B | = | 55.6mm |
| J | = | 130mm |
| L | = | 162mm |
| N | = | 19mm |
| G | = | 16mm |
| T | = | 64.4mm |
| Dynamic load C | = | 43.6 kN |
| Static load Co | = | 29 kN |
| Weight | = | 3.59 kg |
