SKU: FY50TF/VA228-SKF

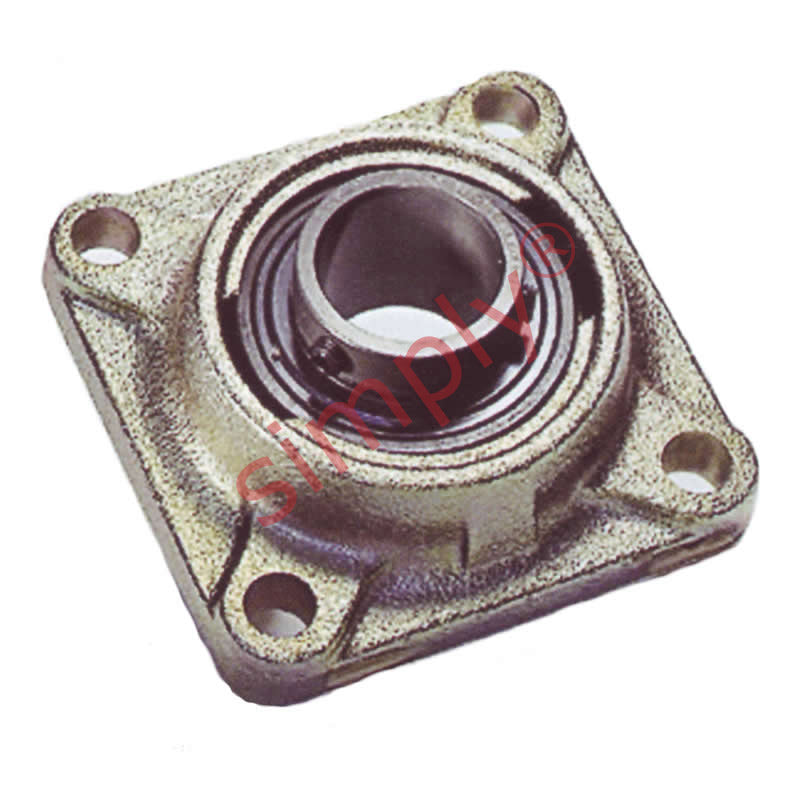

SKF FY50TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 50mm
- Regular price
- CHF 356.00 ex VAT
- Sale price
- CHF 356.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 316.84
19+
CHF 299.04
29+
CHF 295.48
39+
CHF 291.92
49+
CHF 288.36
74+
CHF 284.80
99+
CHF 267.00
199+
CHF 263.44
249+
CHF 259.88
499+
CHF 256.32
999+
CHF 249.20
SKU:
FY50TF/VA228-SKF
SKF FY50TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 50mm
- Regular price
- CHF 356.00 ex VAT
- Sale price
- CHF 356.00
- Regular price
-
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
Technical
| d | = | 50mm |
| A1 | = | 43mm |
| A2 | = | 15mm |
| B | = | 51.6mm |
| J | = | 111mm |
| L | = | 143mm |
| N | = | 15.9mm |
| G | = | 14mm |
| T | = | 60.6mm |
| Dynamic load C | = | 35.1 kN |
| Static load Co | = | 23.2 kN |
| Weight | = | 2.49 kg |
