SKU: FY40TF/VA228-SKF

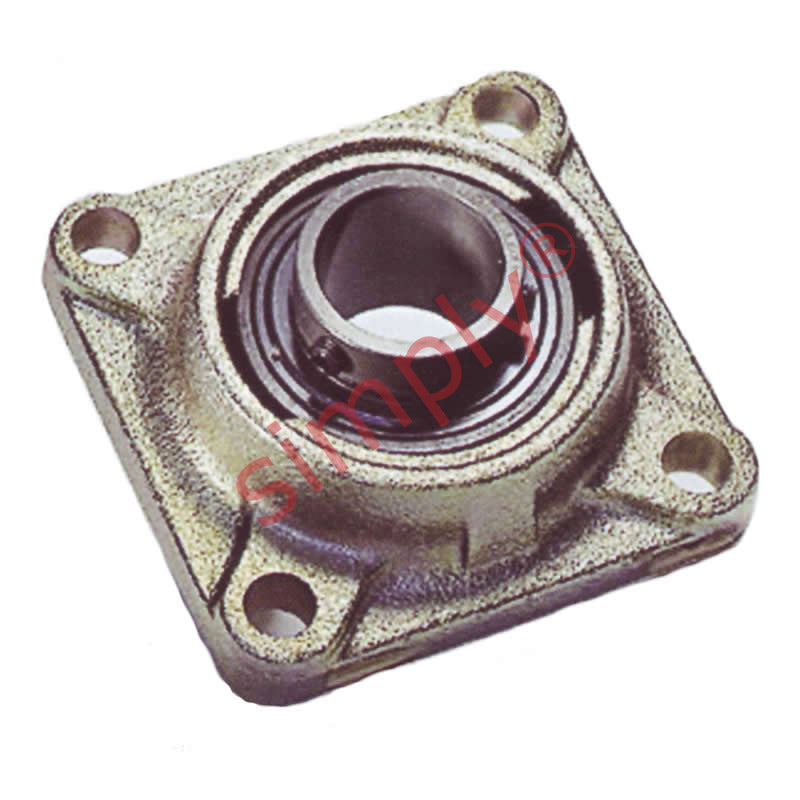

SKF FY40TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 40mm
- Regular price
- CHF 305.00 ex VAT
- Sale price
- CHF 305.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 271.45
19+
CHF 256.20
29+
CHF 253.15
39+
CHF 250.10
49+
CHF 247.05
74+
CHF 244.00
99+
CHF 228.75
199+
CHF 225.70
249+
CHF 222.65
499+
CHF 219.60
999+
CHF 213.50
SKU:
FY40TF/VA228-SKF
SKF FY40TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 40mm
- Regular price
- CHF 305.00 ex VAT
- Sale price
- CHF 305.00
- Regular price
-
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
Technical
| d | = | 40mm |
| A1 | = | 38.5mm |
| A2 | = | 14mm |
| B | = | 49.2mm |
| J | = | 101.5mm |
| L | = | 130mm |
| N | = | 14.3mm |
| G | = | 12mm |
| T | = | 54.2mm |
| Dynamic load C | = | 30.7 kN |
| Static load Co | = | 19 kN |
| Weight | = | 1.9 kg |
