SKU: FY35TF/VA228-SKF

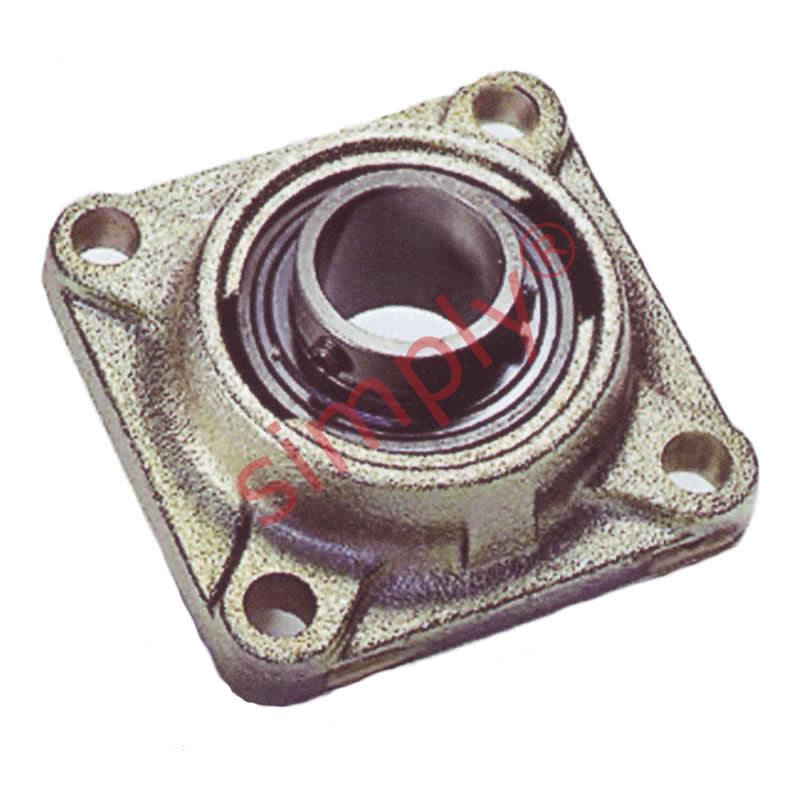

SKF FY35TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 35mm
- Regular price
- CHF 272.00 ex VAT
- Sale price
- CHF 272.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 242.08
19+
CHF 228.48
29+
CHF 225.76
39+
CHF 223.04
49+
CHF 220.32
74+
CHF 217.60
99+
CHF 204.00
199+
CHF 201.28
249+
CHF 198.56
499+
CHF 195.84
999+
CHF 190.40
SKU:
FY35TF/VA228-SKF
SKF FY35TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 35mm
- Regular price
- CHF 272.00 ex VAT
- Sale price
- CHF 272.00
- Regular price
-
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
Technical
| d | = | 35mm |
| A1 | = | 34.5mm |
| A2 | = | 13mm |
| B | = | 42.9mm |
| J | = | 92mm |
| L | = | 118mm |
| N | = | 14.3mm |
| G | = | 12mm |
| T | = | 46.4mm |
| Dynamic load C | = | 25.5 kN |
| Static load Co | = | 15.3 kN |
| Weight | = | 1.41 kg |
