SKU: FY30TF/VA228-SKF

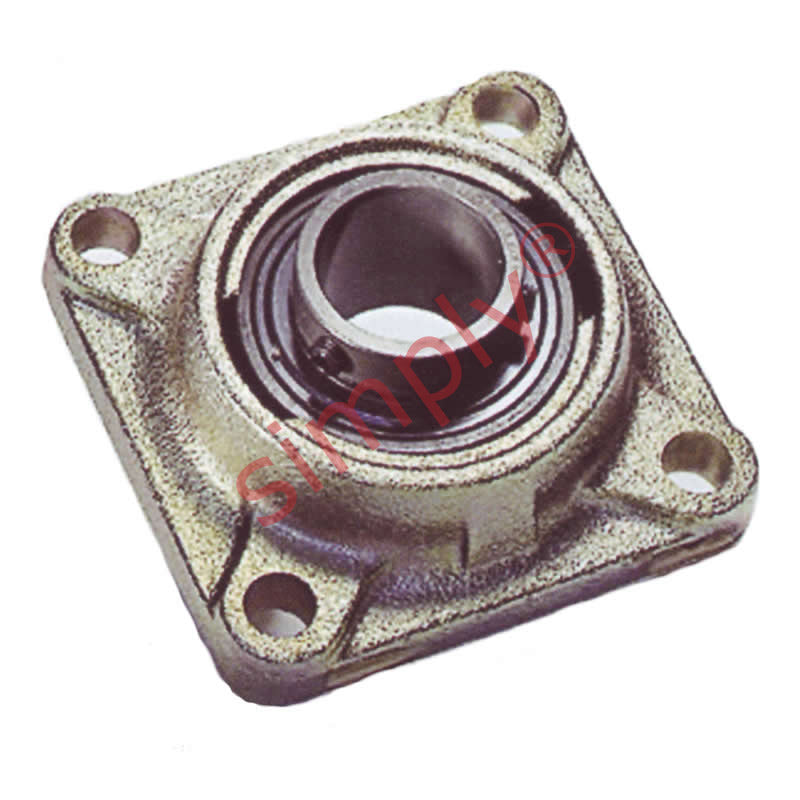

SKF FY30TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 30mm
- Regular price
- CHF 243.00 ex VAT
- Sale price
- CHF 243.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 216.27
19+
CHF 204.12
29+
CHF 201.69
39+
CHF 199.26
49+
CHF 196.83
74+
CHF 194.40
99+
CHF 182.25
199+
CHF 179.82
249+
CHF 177.39
499+
CHF 174.96
999+
CHF 170.10
SKU:
FY30TF/VA228-SKF
SKF FY30TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 30mm
- Regular price
- CHF 243.00 ex VAT
- Sale price
- CHF 243.00
- Regular price
-
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
Technical
| d | = | 30mm |
| A1 | = | 32.5mm |
| A2 | = | 13mm |
| B | = | 38.1mm |
| J | = | 82.5mm |
| L | = | 108mm |
| N | = | 12.7mm |
| G | = | 10mm |
| T | = | 42.2mm |
| Dynamic load C | = | 19.5 kN |
| Static load Co | = | 11.2 kN |
| Weight | = | 1.08 kg |
