SKU: FY3/4TF/VA228-SKF

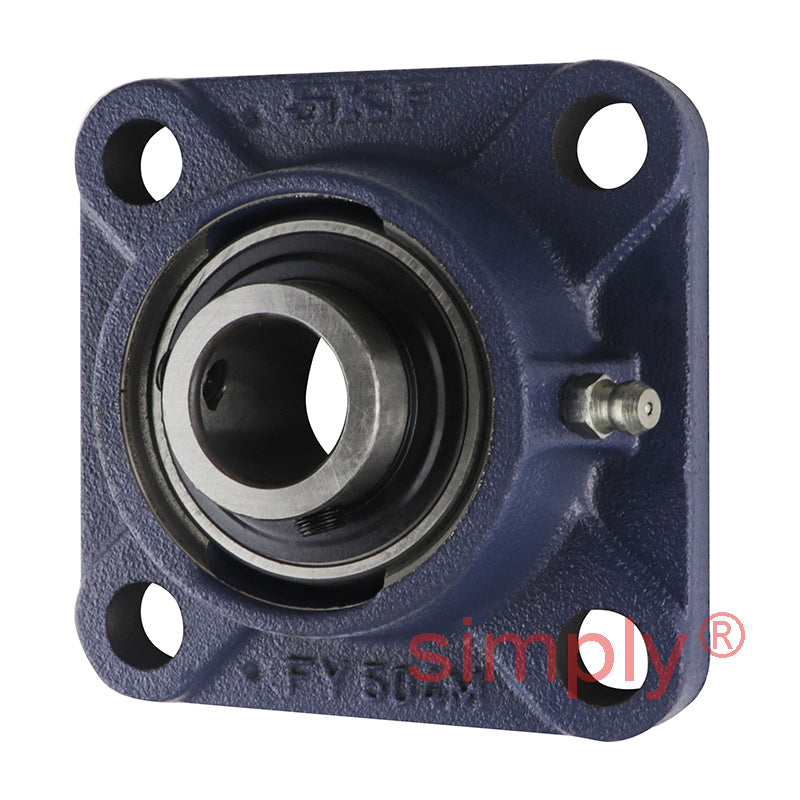

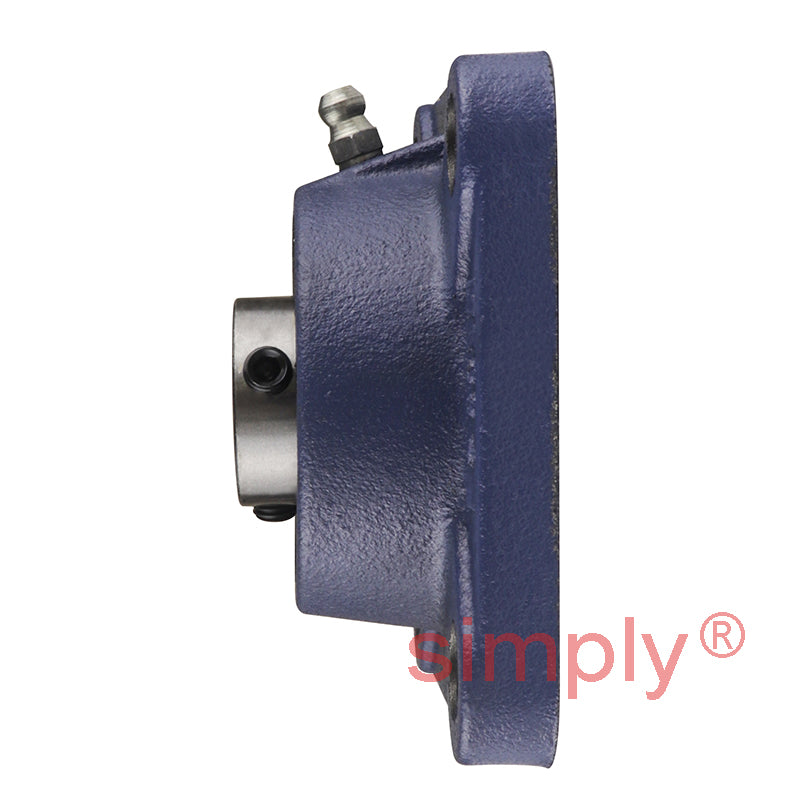

SKF FY3/4TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 3/4inch
- Regular price
- CHF 169.00 ex VAT
- Sale price
- CHF 169.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 150.41
19+
CHF 141.96
29+
CHF 140.27
39+
CHF 138.58
49+
CHF 136.89
74+
CHF 135.20
99+
CHF 126.75
199+
CHF 125.06
249+
CHF 123.37
499+
CHF 121.68
999+
CHF 118.30
SKU:
FY3/4TF/VA228-SKF
SKF FY3/4TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 3/4inch
- Regular price
- CHF 169.00 ex VAT
- Sale price
- CHF 169.00
- Regular price
-
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
Technical
| d | = | 3/4 inch |
| A1 | = | 29.5mm |
| A2 | = | 11mm |
| B | = | 31mm |
| J | = | 63.5mm |
| L | = | 86mm |
| N | = | 11.1mm |
| G | = | 10mm |
| T | = | 37.3mm |
| Dynamic load C | = | 12.7 kN |
| Static load Co | = | 6.55 kN |
| Weight | = | 0.63 kg |
