SKU: FY2.7/16TF/VA228-SKF

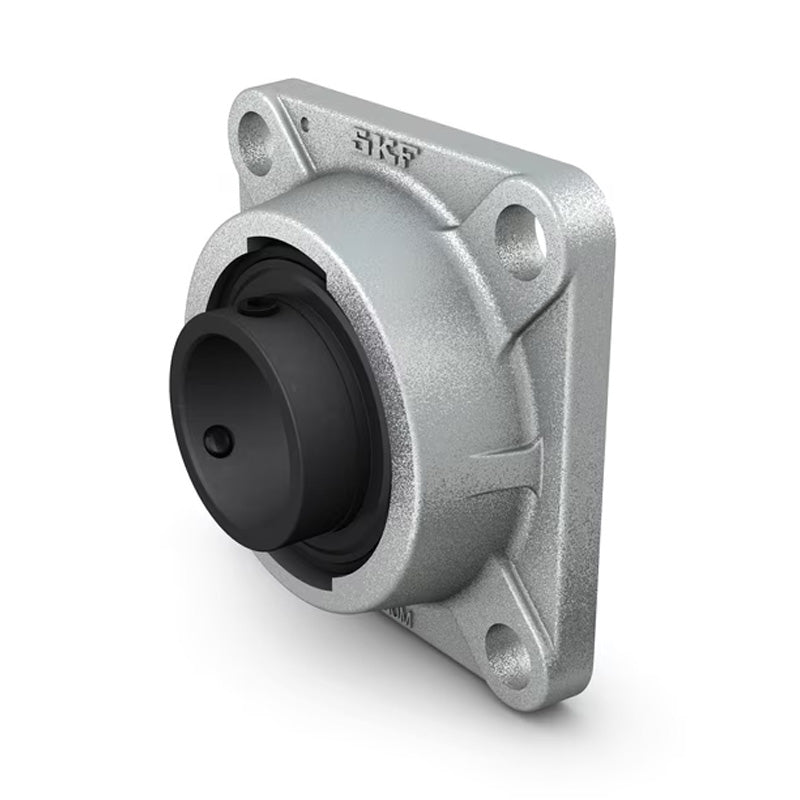

SKF FY2-7/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 2-7/16inch
- Regular price
- CHF 519.00 ex VAT
- Sale price
- CHF 519.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 461.91
19+
CHF 435.96
29+
CHF 430.77
39+
CHF 425.58
49+
CHF 420.39
74+
CHF 415.20
99+
CHF 389.25
199+
CHF 384.06
249+
CHF 378.87
499+
CHF 373.68
999+
CHF 363.30
SKU:
FY2.7/16TF/VA228-SKF
SKF FY2-7/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 2-7/16inch
- Regular price
- CHF 519.00 ex VAT
- Sale price
- CHF 519.00
- Regular price
-
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
Technical
| d | = | 2-7/16 inch |
| A1 | = | 52mm |
| A2 | = | 17mm |
| B | = | 65.1mm |
| J | = | 143mm |
| L | = | 175mm |
| N | = | 19mm |
| G | = | 16mm |
| T | = | 73.7mm |
| Dynamic load C | = | 52.7 kN |
| Static load Co | = | 36 kN |
| Weight | = | 4.65 kg |
