SKU: FY1.TF/VA228-SKF

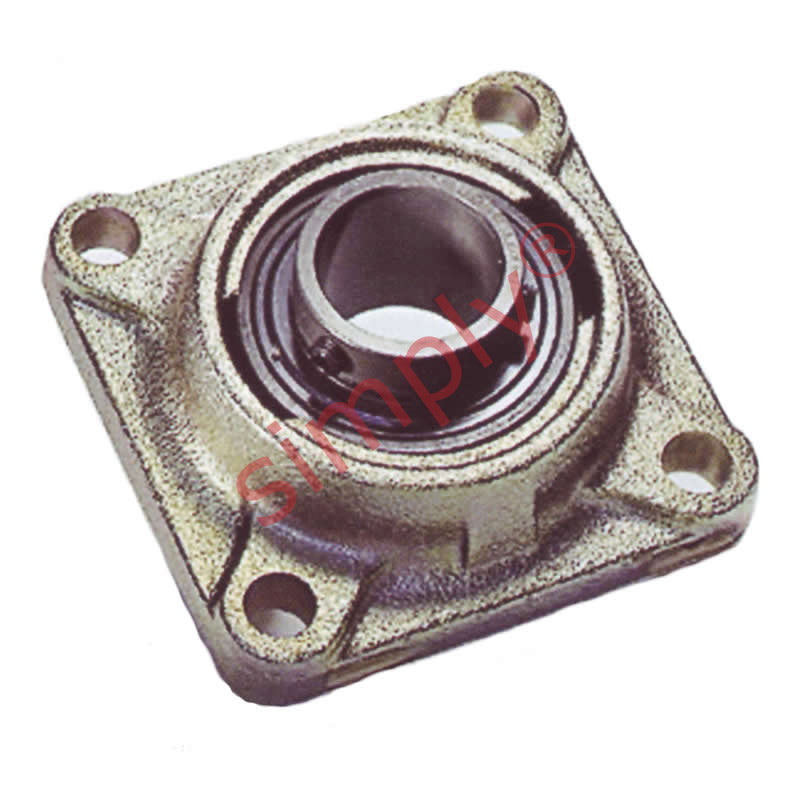

SKF FY1-TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1inch
- Regular price
- CHF 188.00 ex VAT
- Sale price
- CHF 188.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 167.32
19+
CHF 157.92
29+
CHF 156.04
39+
CHF 154.16
49+
CHF 152.28
74+
CHF 150.40
99+
CHF 141.00
199+
CHF 139.12
249+
CHF 137.24
499+
CHF 135.36
999+
CHF 131.60
SKU:
FY1.TF/VA228-SKF
SKF FY1-TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1inch
- Regular price
- CHF 188.00 ex VAT
- Sale price
- CHF 188.00
- Regular price
-
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
Technical
| d | = | 1 inch |
| A1 | = | 30mm |
| A2 | = | 12mm |
| B | = | 34.1mm |
| J | = | 70mm |
| L | = | 95mm |
| N | = | 12.7mm |
| G | = | 10mm |
| T | = | 38.8mm |
| Dynamic load C | = | 14 kN |
| Static load Co | = | 7.8 kN |
| Weight | = | 0.79 kg |
