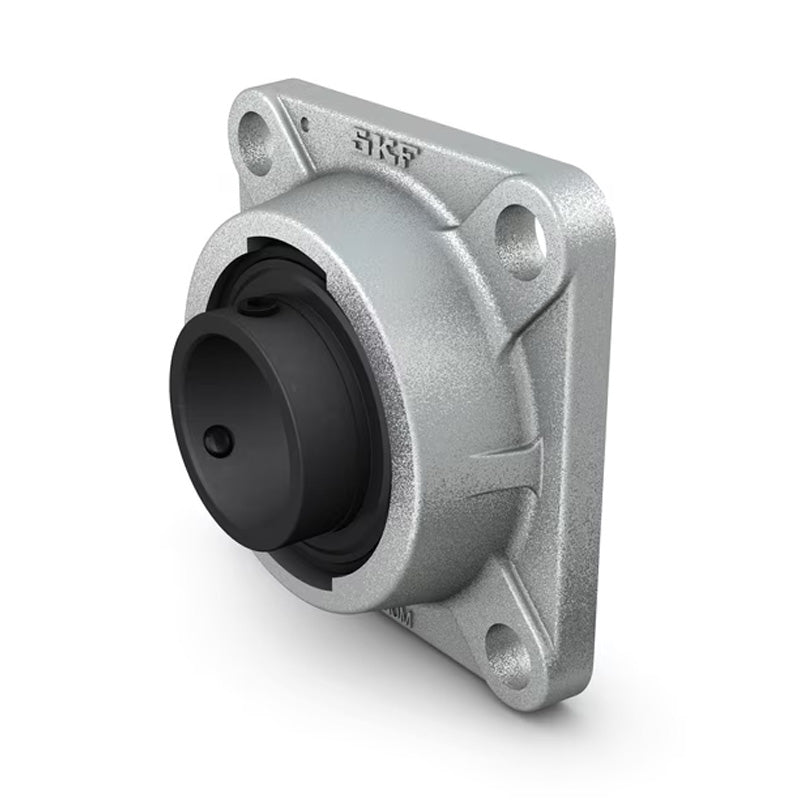

SKF FY1-7/16TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-7/16inch

SKU: FY1.7/16TF/VA201-SKF

SKF FY1-7/16TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-7/16inch

CHF 256.00 ex VAT
CHF 256.00
ex VAT
In stock

Quantity Price Breaks

10+ CHF 227.84
19+ CHF 215.04
29+ CHF 212.48
39+ CHF 209.92
49+ CHF 207.36
74+ CHF 204.80
99+ CHF 192.00
199+ CHF 189.44
249+ CHF 186.88
499+ CHF 184.32
999+ CHF 179.20
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
SKF FY1-7/16TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-7/16inch
SKU: FY1.7/16TF/VA201-SKF

SKF FY1-7/16TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-7/16inch

CHF 256.00 ex VAT
CHF 256.00
ex VAT

Description

SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius

Technical

d = 1-7/16 inch
A1 = 34.5mm
A2 = 13mm
B = 42.9mm
J = 92mm
L = 118mm
N = 14.3mm
G = 12mm
T = 46.4mm
Dynamic load C = 25.5 kN
Static load Co = 15.3 kN
Weight = 1.42 kg
