SKU: FY1.3/16TF/VA201-SKF

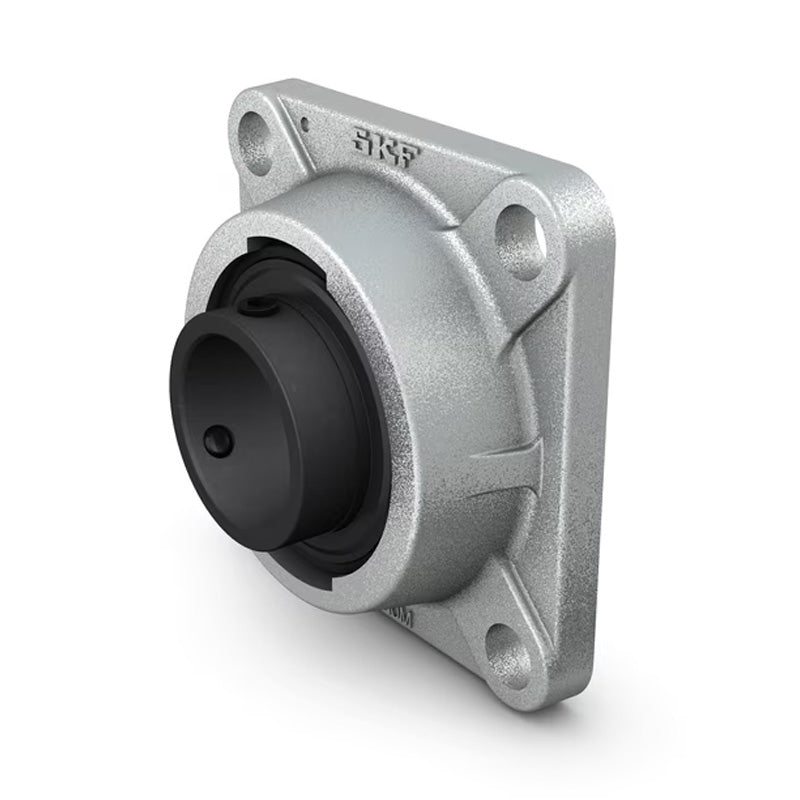

SKF FY1-3/16TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-3/16inch
- Regular price
- CHF 229.00 ex VAT
- Sale price
- CHF 229.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 203.81
19+
CHF 192.36
29+
CHF 190.07
39+
CHF 187.78
49+
CHF 185.49
74+
CHF 183.20
99+
CHF 171.75
199+
CHF 169.46
249+
CHF 167.17
499+
CHF 164.88
999+
CHF 160.30
SKU:
FY1.3/16TF/VA201-SKF
SKF FY1-3/16TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-3/16inch
- Regular price
- CHF 229.00 ex VAT
- Sale price
- CHF 229.00
- Regular price
-
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
Technical
| d | = | 1-3/16 inch |
| A1 | = | 32.5mm |
| A2 | = | 13mm |
| B | = | 38.1mm |
| J | = | 82.5mm |
| L | = | 108mm |
| N | = | 12.7mm |
| G | = | 10mm |
| T | = | 42.2mm |
| Dynamic load C | = | 19.5 kN |
| Static load Co | = | 11.2 kN |
| Weight | = | 1.11 kg |
