SKU: FY1.15/16TF/VA228-SKF

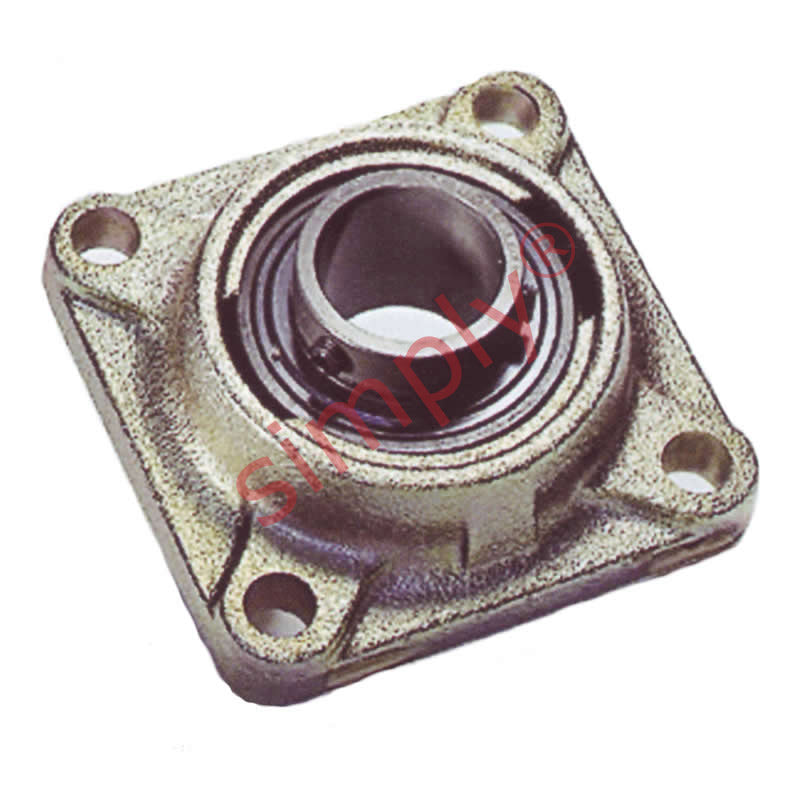

SKF FY1-15/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-15/16inch
- Regular price
- CHF 335.00 ex VAT
- Sale price
- CHF 335.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 298.15
19+
CHF 281.40
29+
CHF 278.05
39+
CHF 274.70
49+
CHF 271.35
74+
CHF 268.00
99+
CHF 251.25
199+
CHF 247.90
249+
CHF 244.55
499+
CHF 241.20
999+
CHF 234.50
SKU:
FY1.15/16TF/VA228-SKF
SKF FY1-15/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-15/16inch
- Regular price
- CHF 335.00 ex VAT
- Sale price
- CHF 335.00
- Regular price
-
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
Technical
| d | = | 1-15/16 inch |
| A1 | = | 43mm |
| A2 | = | 15mm |
| B | = | 51.6mm |
| J | = | 111mm |
| L | = | 143mm |
| N | = | 15.9mm |
| G | = | 14mm |
| T | = | 60.6mm |
| Dynamic load C | = | 35.1 kN |
| Static load Co | = | 23.2 kN |
| Weight | = | 2.58 kg |
