SKU: FY1.1/2TF/VA228-SKF

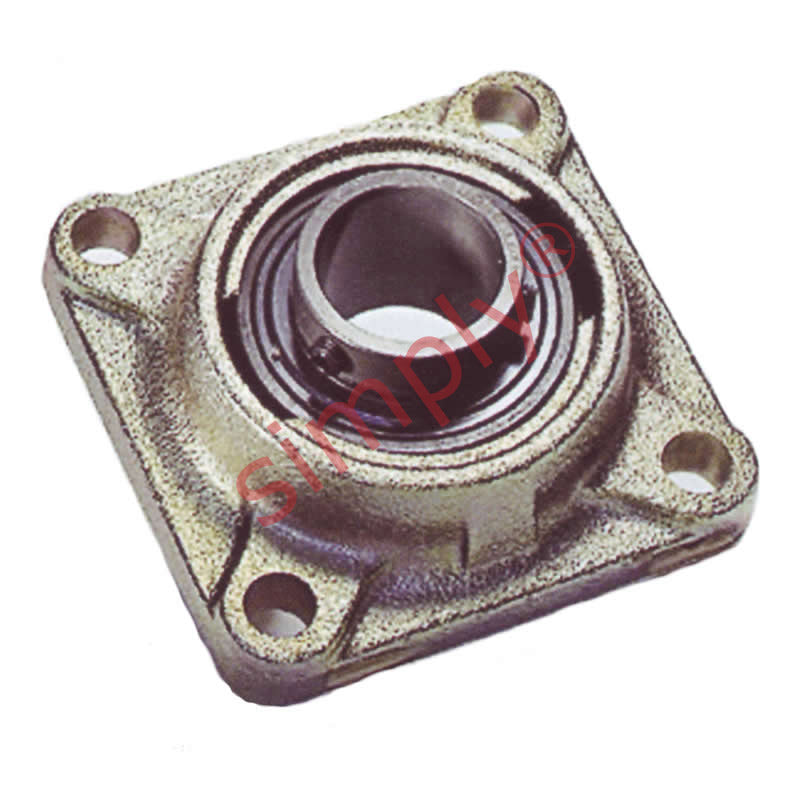

SKF FY1-1/2TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-1/2inch
- Regular price
- CHF 307.00 ex VAT
- Sale price
- CHF 307.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 273.23
19+
CHF 257.88
29+
CHF 254.81
39+
CHF 251.74
49+
CHF 248.67
74+
CHF 245.60
99+
CHF 230.25
199+
CHF 227.18
249+
CHF 224.11
499+
CHF 221.04
999+
CHF 214.90
SKU:
FY1.1/2TF/VA228-SKF
SKF FY1-1/2TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-1/2inch
- Regular price
- CHF 307.00 ex VAT
- Sale price
- CHF 307.00
- Regular price
-
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
Technical
| d | = | 1-1/2 inch |
| A1 | = | 38.5mm |
| A2 | = | 14mm |
| B | = | 49.2mm |
| J | = | 101.5mm |
| L | = | 130mm |
| N | = | 14.3mm |
| G | = | 12mm |
| T | = | 54.2mm |
| Dynamic load C | = | 30.7 kN |
| Static load Co | = | 19 kN |
| Weight | = | 1.94 kg |
