SKU: FS-M05-MB

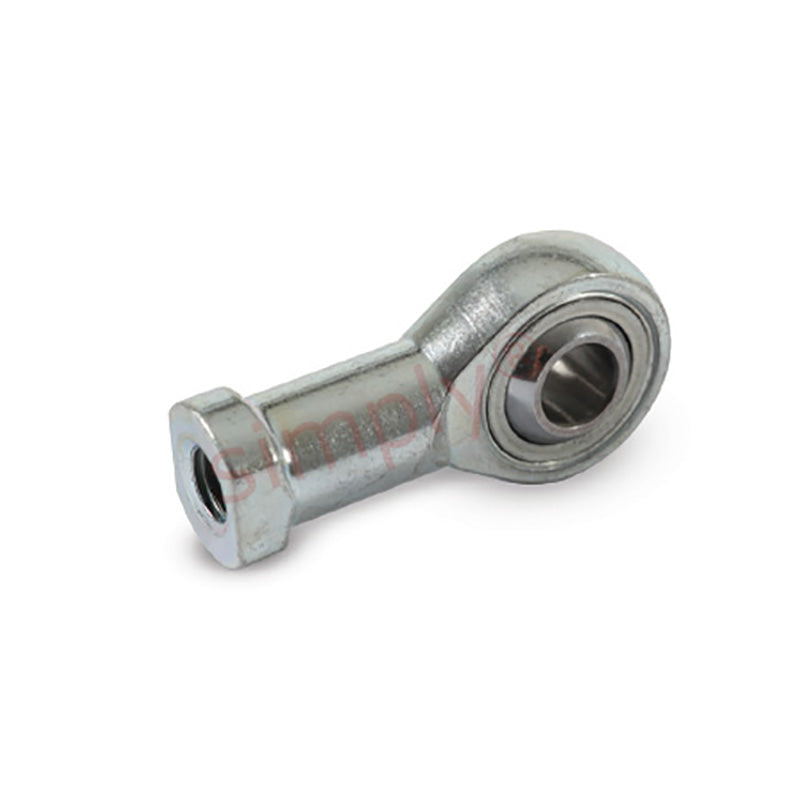

Branded FS-M05 Right Hand Metric Steel / PTFE Lined Maintenance Free Plain Female Rod End M8x0.7 Thread - Allow 7-10 Days
- Regular price
- CHF 15.00 ex VAT
- Sale price
- CHF 15.00
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
10
CHF 13.35
19
CHF 12.60
29
CHF 12.45
39
CHF 12.30
49
CHF 12.15
74
CHF 12.00
99
CHF 11.25
199
CHF 11.10
249
CHF 10.95
499
CHF 10.80
999
CHF 10.50
Description
|
FS Maintenance Free Rod Ends With Female Thread: The FS series are a steel on steel range of female rod ends incorporating a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, they do not require maintenance. Temperature range -200c to +260c Benefits: High shock loads, extended wear life, no maintenance |
Technical
| Bore size | = | 5mm |
| Thread | = | M8x0.7 |
| W | = | 8mm |
| H | = | 6mm |
| D | = | 18mm |
| L1 | = | 27mm |
| L2 | = | 10mm |
| O | = | 7.7mm |
| AF | = | 9mm |
| Static load | = | 4300 N |
