SKU: F10-18-EU

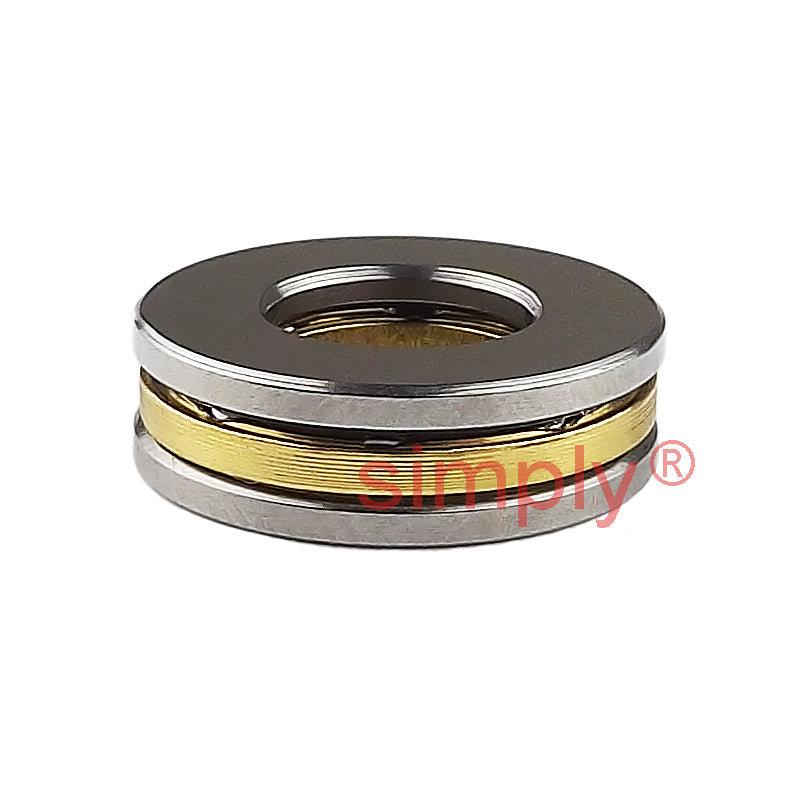

F10-18 Budget Single Thrust Ball Bearing 10x18x5.5mm
- Regular price
- CHF 5.00 ex VAT
- Sale price
- CHF 5.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 4.45
19
CHF 4.20
29
CHF 4.15
39
CHF 4.10
49
CHF 4.05
74
CHF 4.00
99
CHF 3.75
199
CHF 3.70
249
CHF 3.65
499
CHF 3.60
999
CHF 3.50
SKU:
F10-18-EU
F10-18 Budget Single Thrust Ball Bearing 10x18x5.5mm
- Regular price
- CHF 5.00 ex VAT
- Sale price
- CHF 5.00
- Regular price
-
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly

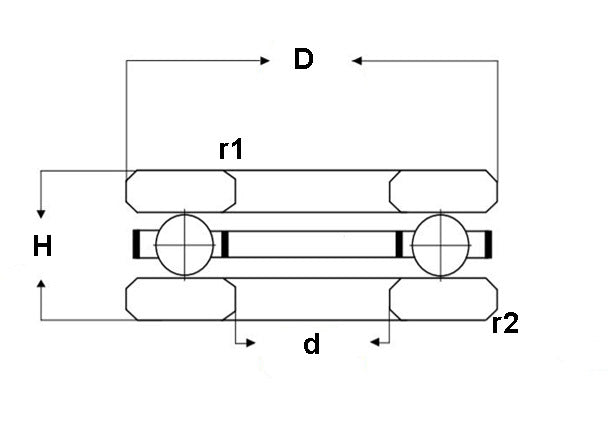

Technical
| d | = | 10mm (+/-0.008mm) |
| D | = | 18mm (+0/-0.011mm) |
| H | = | 5.5mm (+0/-0.075mm) |
| r1r2 min | = | 0.3mm |
| Dynamic load C | = | 0.78 kN |
| Static load Co | = | 0.7 kN |
| Weight | = | 0.006 kg |
| Limiting Speed | = | 14000 rpm |
| Lubrication | = | Light Oil AF2 |
| Material | = | Balls & |
| Washers, Chrome Steel, Brass or 304 Stainless Steel Cage | = | N/A |
