SKU: DL15/35-35X87X41
Major Branded DL15/35 Steel DRIVELOCK Bush 35x87x41mm - Allow 2-3 Days
- Regular price
- CHF 18.00 ex VAT
- Sale price
- CHF 18.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 16.02
5
CHF 15.12
9
CHF 14.94
19
CHF 14.76
49
CHF 14.58
74
CHF 14.40
99
CHF 13.50
199
CHF 13.32
249
CHF 13.14
499
CHF 12.96
999
CHF 12.60
SKU:
DL15/35-35X87X41
Major Branded DL15/35 Steel DRIVELOCK Bush 35x87x41mm - Allow 2-3 Days
- Regular price
- CHF 18.00 ex VAT
- Sale price
- CHF 18.00
- Regular price
-
Description
DRIVELOCK 15 Bushes: These bushes are self-centering components designed for secure shaft-hub connections, ideal for light to moderate-duty applications with torque capacities ranging from 282 to 2,700 Nm. They accommodate bore sizes from 14mm to 50mm and are available in metric and imperial sizes. Their self-centering design ensures precise alignment, reducing wear and vibration to extend equipment lifespan.
Benefits: Suitable for moderate applications, self-centering for precision, versatility in bore sizes

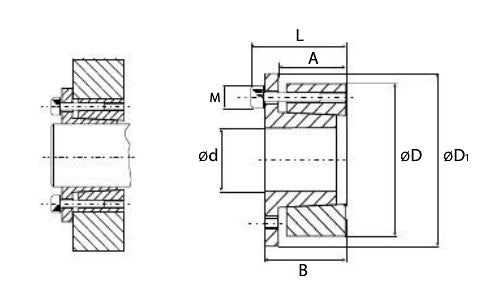

Technical
| Material | = | Steel |
| d (h8) | = | 35mm |
| D | = | 80mm |
| D1 | = | 87mm |
| M (screws) | = | M8 |
| L | = | 41mm |
| B | = | 33mm |
| A | = | 25mm |
| Ts | = | 41 Nm |
| T | = | 1260 Nm |
| F | = | 49 kN |
| p | = | 120 N/mm2 |
| Shaft | = | h8 |
| Hub | = | H8 |
| Weight Kg | = | 0.001 kg |
