SKU: DD665-5M-15

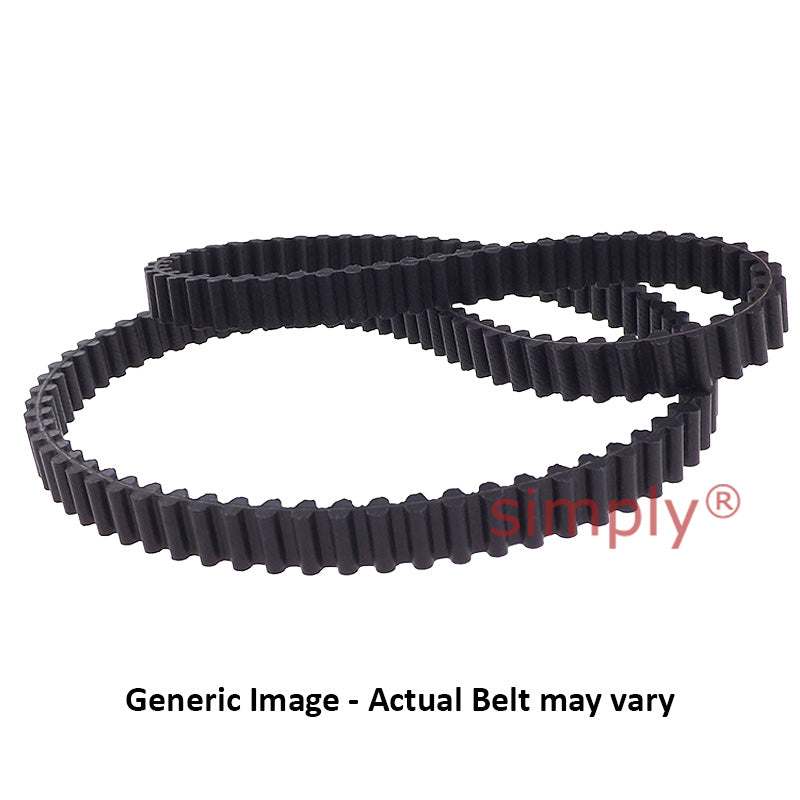

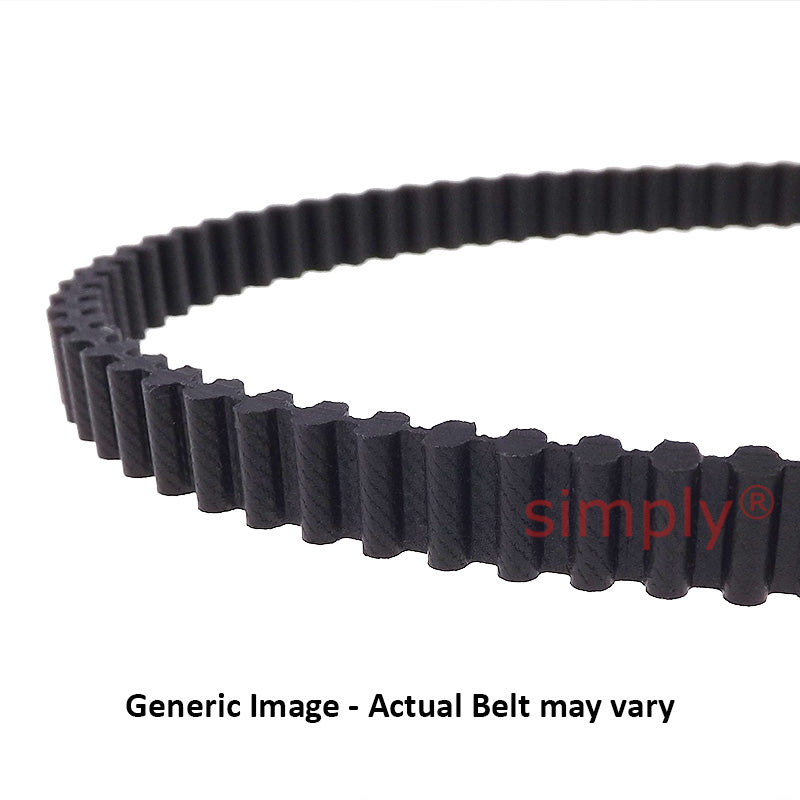

DD665-5M-15 Major Brand Double-Sided Timing Belt 15mm Wide 5mm Pitch 133 Teeth
- Regular price
- CHF 36.00 ex VAT
- Sale price
- CHF 36.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 32.04
5
CHF 30.24
10
CHF 29.88
15
CHF 29.52
20
CHF 29.16
30
CHF 28.80
40
CHF 27.00
50
CHF 26.64
60
CHF 26.28
75
CHF 25.92
100
CHF 25.20
SKU:
DD665-5M-15
DD665-5M-15 Major Brand Double-Sided Timing Belt 15mm Wide 5mm Pitch 133 Teeth
- Regular price
- CHF 36.00 ex VAT
- Sale price
- CHF 36.00
- Regular price
-
Description
Double-Sided HTD Timing Belts 5mm Pitch Belt: Double-sided belts have teeth equally constructed on each side of the belt, which enables them to mesh with toothed pulleys on both the inside and outside. The construction of the belts is the same as standard Metric belts, except that the nylon facing is also on the backing teeth, enabling full torque transmission from each side of the belt.
Benefits: Reverse motion between internal and external pulleys
Require only one belt to drive a series of pulleys
Simplified design layouts and weight reduction.
Technical
| Pitch length | = | 665mm |
| Belt width | = | 15mm |
| Number of teeth | = | 133 |
| Tooth pitch t | = | 5mm |
| Belt thickness h< | = | sub> |
| s< | = | /sub> |
| = | 5.4mm | |
| Tooth height h< | = | sub> |
| t< | = | /sub> |
| = | 2.1mm |
