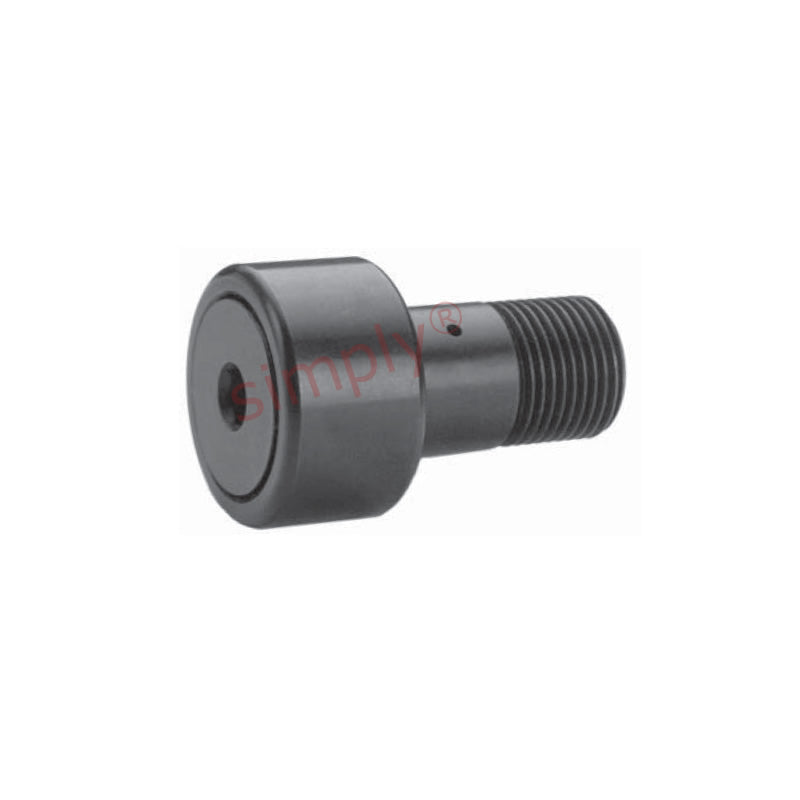

Major Brand CNBH52B Heavy Duty Hex Head Cylindrical Cam Follower 1-5/8 inch Outside Diameter Allow 7-10 Days

SKU: CNBH-52-B

Major Brand CNBH52B Heavy Duty Hex Head Cylindrical Cam Follower 1-5/8 inch Outside Diameter Allow 7-10 Days

CHF 62.00 ex VAT
CHF 62.00
ex VAT
Equivalent to: CFH-1-5/8-B H-52-W HR-1-5/8-B CRHB-26
Not in stock

Quantity Price Breaks

3 CHF 55.18
4 CHF 52.08
9 CHF 51.46
19 CHF 50.84
29 CHF 50.22
39 CHF 49.60
49 CHF 46.50
59 CHF 45.88
249 CHF 45.26
499 CHF 44.64
999 CHF 43.40
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand CNBH52B Heavy Duty Hex Head Cylindrical Cam Follower 1-5/8 inch Outside Diameter Allow 7-10 Days
SKU: CNBH-52-B

Major Brand CNBH52B Heavy Duty Hex Head Cylindrical Cam Follower 1-5/8 inch Outside Diameter Allow 7-10 Days

CHF 62.00 ex VAT
CHF 62.00
ex VAT

Description

Heavy Duty Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F.
Benefits: Suitable for many cam or track roller applications with moderate loading and shock, provides ease of installing with a hex wrench.

Technical

A = 1.625 inch
B = 0.875 inch
C = 0.875 inch
D = 1.5 inch
E = 0.75 inch
Thread class 2A F = 7/8-14 UNF
G = 3/8 inch
H = 3/32 inch
J = 3/16 inch
Min boss diameter = 1-3/32 inch
Recommended bore = 0.875 inch
Recommended torque = 1500 lbf-in
Max static capacity = 11280 lbs
Basic dynamic rating = 4840 lbs
