SKU: CNBH-44

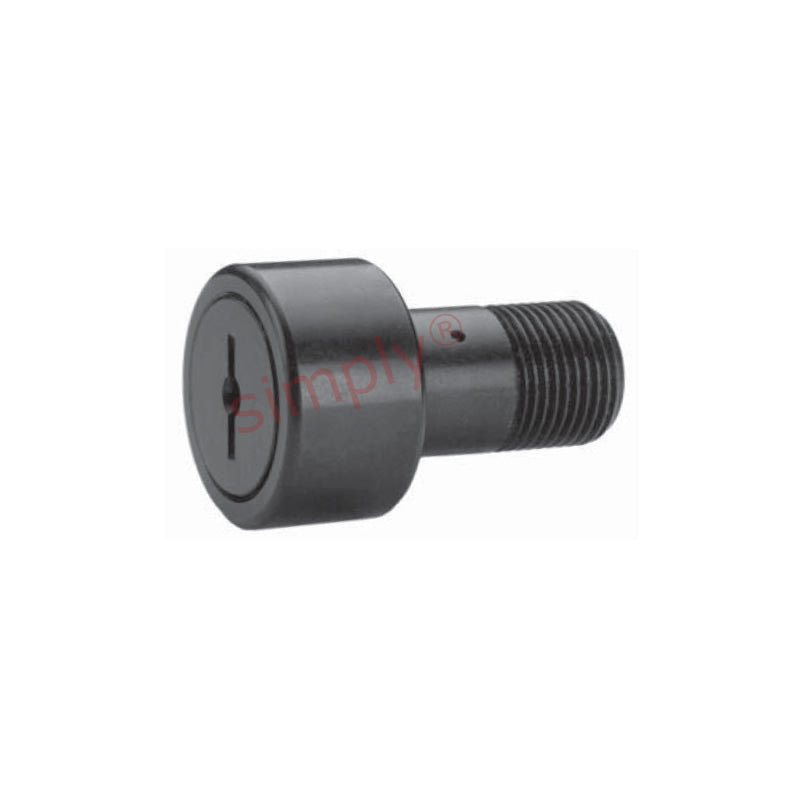

Major Brand CNBH44 Heavy Duty Slotted Cylindrical Cam Follower 1-3/8 inch Outside Diameter Allow 7-10 Days
- Regular price
- CHF 48.00 ex VAT
- Sale price
- CHF 48.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 42.72
4
CHF 40.32
9
CHF 39.84
19
CHF 39.36
29
CHF 38.88
39
CHF 38.40
49
CHF 36.00
59
CHF 35.52
249
CHF 35.04
499
CHF 34.56
999
CHF 33.60
SKU:
CNBH-44
Major Brand CNBH44 Heavy Duty Slotted Cylindrical Cam Follower 1-3/8 inch Outside Diameter Allow 7-10 Days
- Regular price
- CHF 48.00 ex VAT
- Sale price
- CHF 48.00
- Regular price
-
Description
|
Heavy Duty Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Technical
| A | = | 1.375 inch |
| B | = | 0.75 inch |
| C | = | 0.75 inch |
| D | = | 1.25 inch |
| E | = | 0.625 inch |
| Thread class 2A F | = | 3/4-16 UNF |
| G | = | 5/16 inch |
| H | = | 3/32 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 63/64 inch |
| Recommended bore | = | 0.75 inch |
| Recommended torque | = | 1250 lbf-in |
| Max static capacity | = | 8500 lbs |
| Basic dynamic rating | = | 3930 lbs |
