SKU: CNBH-40-B
Major Brand CNBH40B Heavy Duty Hex Head Cylindrical Cam Follower 1-1/4 inch Outside Diameter Allow 7-10 Days
- Regular price
- CHF 50.00 ex VAT
- Sale price
- CHF 50.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 44.50
4
CHF 42.00
9
CHF 41.50
19
CHF 41.00
29
CHF 40.50
39
CHF 40.00
49
CHF 37.50
59
CHF 37.00
249
CHF 36.50
499
CHF 36.00
999
CHF 35.00
SKU:
CNBH-40-B
Major Brand CNBH40B Heavy Duty Hex Head Cylindrical Cam Follower 1-1/4 inch Outside Diameter Allow 7-10 Days
- Regular price
- CHF 50.00 ex VAT
- Sale price
- CHF 50.00
- Regular price
-
Description
|
Heavy Duty Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, provides ease of installing with a hex wrench. |

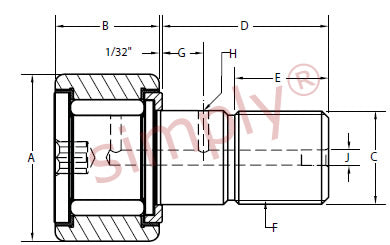

Technical
| A | = | 1.25 inch |
| B | = | 0.75 inch |
| C | = | 0.75 inch |
| D | = | 1.25 inch |
| E | = | 0.625 inch |
| Thread class 2A F | = | 3/4-16 UNF |
| G | = | 5/16 inch |
| H | = | 3/32 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 63/64 inch |
| Recommended bore | = | 0.75 inch |
| Recommended torque | = | 1250 lbf-in |
| Max static capacity | = | 8500 lbs |
| Basic dynamic rating | = | 3930 lbs |
