SKU: CNBH-104
Major Brand CNBH104 Heavy Duty Slotted Cylindrical Cam Follower 3-1/4 inch Outside Diameter Allow 7-10 Days
- Regular price
- CHF 208.00 ex VAT
- Sale price
- CHF 208.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 185.12
4
CHF 174.72
9
CHF 172.64
19
CHF 170.56
29
CHF 168.48
39
CHF 166.40
49
CHF 156.00
59
CHF 153.92
249
CHF 151.84
499
CHF 149.76
999
CHF 145.60
SKU:
CNBH-104
Major Brand CNBH104 Heavy Duty Slotted Cylindrical Cam Follower 3-1/4 inch Outside Diameter Allow 7-10 Days
- Regular price
- CHF 208.00 ex VAT
- Sale price
- CHF 208.00
- Regular price
-
Description
|
Heavy Duty Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |

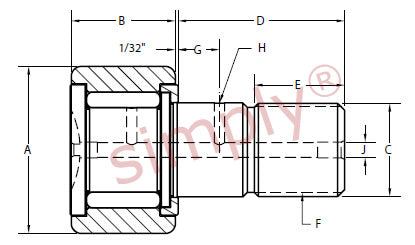

Technical
| A | = | 3.25 inch |
| B | = | 1.75 inch |
| C | = | 1.5 inch |
| D | = | 2.5 inch |
| E | = | 1.25 inch |
| Thread class 2A F | = | 1-1/2-12 UNF |
| G | = | 5/8 inch |
| H | = | 1/8 inch |
| J | = | 1/4 inch |
| Min boss diameter | = | 1-3/4 inch |
| Recommended bore | = | 1.5 inch |
| Recommended torque | = | 5000 lbf-in |
| Max static capacity | = | 49820 lbs |
| Basic dynamic rating | = | 15720 lbs |
