SKU: CNBE-96-SB

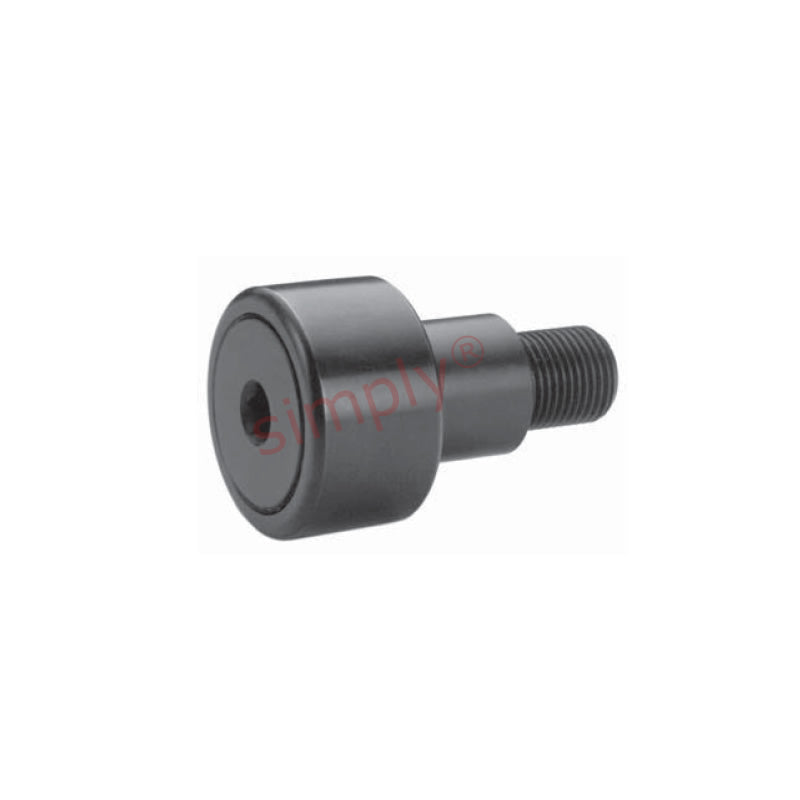

Major Brand CNBE96SB Hex Head Sealed Cylindrical Cam Follower with Eccentric Stud 3 inch Outside Diameter Allow 7-10 Days
- Regular price
- CHF 264.00 ex VAT
- Sale price
- CHF 264.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 234.96
4
CHF 221.76
9
CHF 219.12
19
CHF 216.48
29
CHF 213.84
39
CHF 211.20
49
CHF 198.00
59
CHF 195.36
249
CHF 192.72
499
CHF 190.08
999
CHF 184.80
SKU:
CNBE-96-SB
Major Brand CNBE96SB Hex Head Sealed Cylindrical Cam Follower with Eccentric Stud 3 inch Outside Diameter Allow 7-10 Days
- Regular price
- CHF 264.00 ex VAT
- Sale price
- CHF 264.00
- Regular price
-
Description
|
Sealed Cam Follower with Hex Head and Eccentric Stud: Designed for applications where holding close tolerances of the mounting holes may prove difficult. The eccentric bushing is made of cold drawn steel so you can drill or dowel through the housing and into the stud for permanent locking. The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
Technical
| A | = | 3 inch |
| B | = | 1.75 inch |
| C | = | 1.25 inch |
| D | = | 1.75 inch |
| E | = | 2.5 inch |
| F | = | 1.25 inch |
| Thread class 2A G | = | 1-1/4-12 UNF |
| H | = | 1/4 inch |
| Min boss diameter | = | 1-3/4 inch |
| Recommended torque | = | 3450 lbf-in |
| Max static capacity | = | 24910 lbs |
| Basic dynamic rating | = | 15720 lbs |
