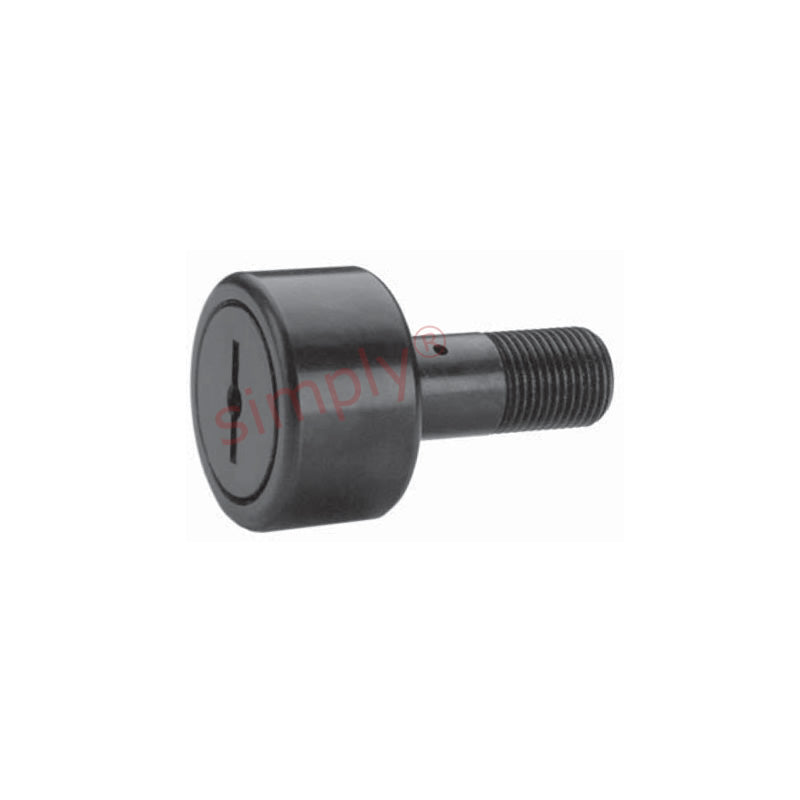

Major Brand CNB96S Sealed and Slotted Cylindrical Cam Follower 3 inch Outside Diameter

SKU: CNB-96-S

Major Brand CNB96S Sealed and Slotted Cylindrical Cam Follower 3 inch Outside Diameter

CHF 210.00 ex VAT
CHF 210.00
ex VAT
Equivalent to: CF-3-S S-96-L CR-3-X CRS-48
Not in stock

Quantity Price Breaks

3 CHF 186.90
4 CHF 176.40
9 CHF 174.30
19 CHF 172.20
29 CHF 170.10
39 CHF 168.00
49 CHF 157.50
59 CHF 155.40
249 CHF 153.30
499 CHF 151.20
999 CHF 147.00
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand CNB96S Sealed and Slotted Cylindrical Cam Follower 3 inch Outside Diameter
SKU: CNB-96-S

Major Brand CNB96S Sealed and Slotted Cylindrical Cam Follower 3 inch Outside Diameter

CHF 210.00 ex VAT
CHF 210.00
ex VAT

Description

Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F.
Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication.

Technical

A = 3 inch
B = 1.75 inch
C = 1.25 inch
D = 2.5 inch
E = 1.25 inch
Thread class 2A F = 1-1/4-12 UNF
G = 5/8 inch
H = 1/8 inch
J = 1/4 inch
Min boss diameter = 1-3/4 inch
Recommended bore = 1.25 inch
Recommended torque = 3450 lbf-in
Max static capacity = 24910 lbs
Basic dynamic rating = 15720 lbs
